9000 Series Tractor with 3 SCVs Less Hitch
Planters Equipped with Vacuum and Variable Rate Drive
| Hose Connections |
| Case Draina |
D-Must Be Connected First |
| Hose Identification |
Pressure |
Return |
| Frame Functions and CCS |
Extend Port |
Retract Port |
| Independent Markers and Drawbar |
Extend Port |
Retract Port |
| Vacuum System |
Retract Port |
Extend Port |
| Variable Rate Drive on Power Beyond with Load Sense (C) |
Power Beyond Pressure |
Power Beyond Return |
| aCase drain hose MUST be attached PRIOR to inlet and return hoses being connected. |
 CAUTION:
Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.
IMPORTANT:
Vacuum RETURN hose, with special tip, MUST be connected to tractor EXTEND port. Avoid damaging pressure spikes; shut vacuum motor and variable rate drive off by placing SCV lever in float position.
|

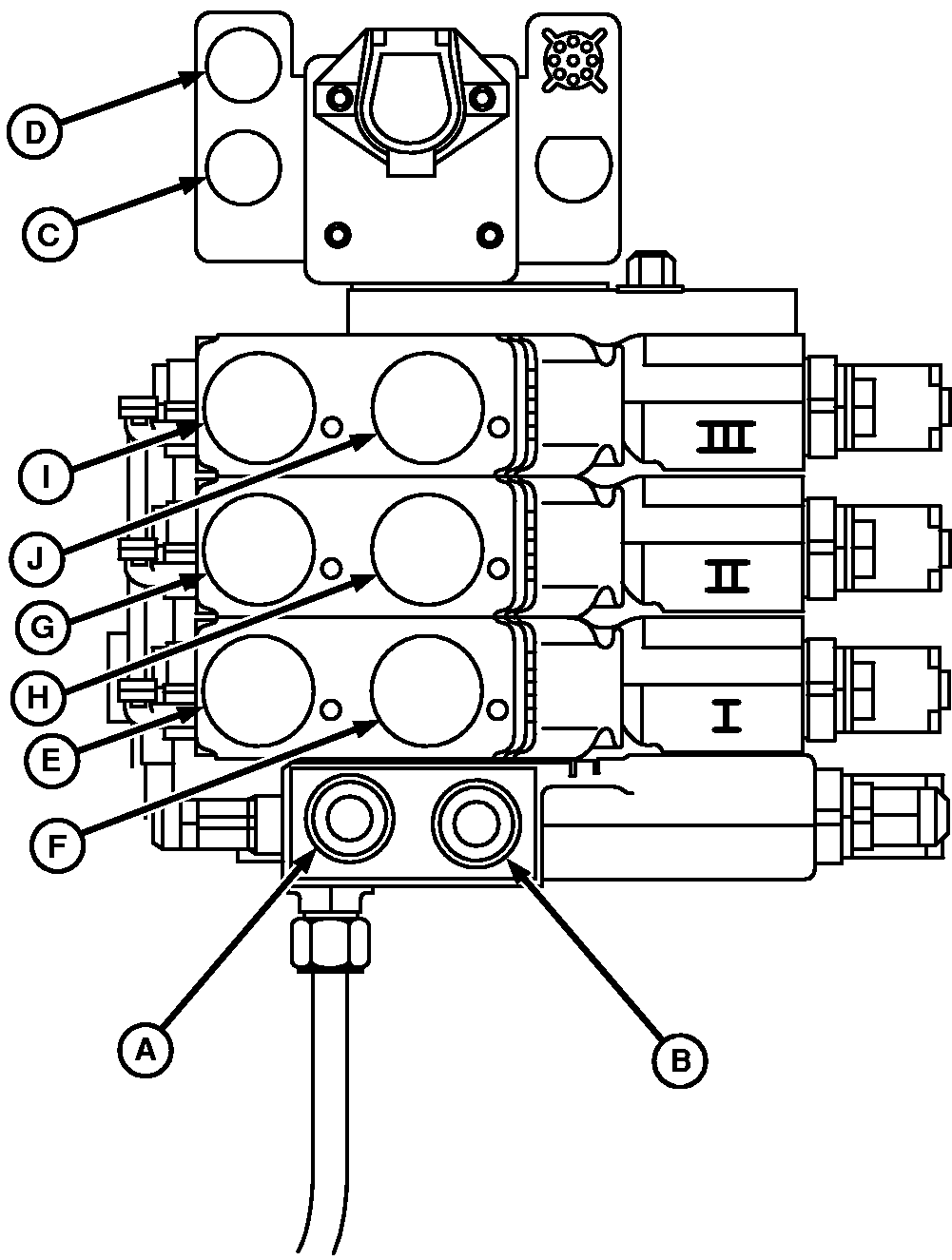

9000 Series Tractor with 3 SCV's Less Hitch
A-Auxiliary Pressure Port (Power Beyond Pressure)
B-Return Port (Power Beyond Return)
C-Load Sense Coupler (Power Beyond Load Sense)
D-Motor Seal Drain Port (Fan Motor Case Drain Connection)
E-SCV I (Extend)
F-SCV I (Retract)
G-SCV II (Extend)
H-SCV II (Retract)
I-SCV III (Extend)
J-SCV III (Retract)
|
