Lowering/Raising Machine in Transport Position For Filling and/or Servicing

NOTE: Directions for this procedure are also located on frame control harness decal. Decals are installed below frame control.

1. Press the PLANT-TRANS switch to TRANS position.

IMPORTANT: If machine is not cycled completely, wheel cylinders will be out of phase. To rephase, completely lower machine.

2. Press and hold WING WHEEL-FOLD switch in the WING WHEEL position and activate SCV to FULLY LOWER wing wheels. (Center frame wheels will lower from high lift.)

3. Press the PLANT-TRANS switch to PLANT position.

IMPORTANT: To prevent damage to openers, lower frame and hitch simultaneously to keep machine level.

IMPORTANT: If machine is not cycled completely, wheel cylinders will be out of phase. To rephase, completely lower machine.

4. Lower frame and hitch simultaneously, keeping hitch level until machine is COMPLETELY lowered.

5. Fill or service machine.

IMPORTANT: To prevent damage to openers, lower frame and hitch simultaneously to keep machine level.

IMPORTANT: If machine is not cycled completely, wheel cylinders will be out of phase. To rephase, completely lower machine.

6. With PLANT-TRANS switch in PLANT position, raise frame and hitch simultaneously, keeping hitch level until machine is COMPLETELY raised.

7. Press the PLANT-TRANS switch to TRANS position.

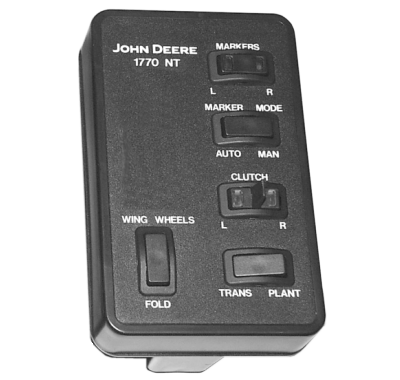

A47438

12/16 Row CCS Frame Control

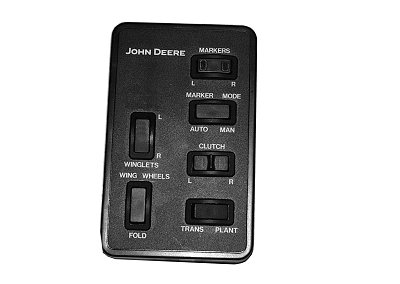

A54115

24 Row CCS Frame Control

A52390

Drawbar Hitch Control Console

OUO6435,0001F3F -19-26JAN06-1/2

8. Press and hold WING WHEELS switch while activating the SCV to raise wing wheels and allow main frame wheels to extend into high lift.
