Installing Service Locks-12/16 Row

causym CAUTION: Lower machine to ground before working on any hydraulic components or welding.

IMPORTANT: Service locks are not to be used as transport locks.

1. Remove service locks (A) from storage position. Wing wheel locks are stored on the outer wings behind the markers. Main frame locks are stored on the CCS ladder frame rails.


A-Service Locks

A49947

Main Frame Lock - Storage Position

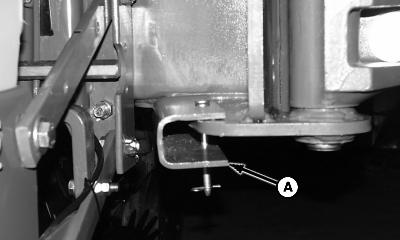

A48913

Wing Frame Service Lock - Storage Position

OUO6435,0001F64 -19-31JAN06-1/3

IMPORTANT: Avoid machine damage. Flat plate on service lock must be on top side against cylinder.

2. Raise machine and install service locks (A) onto both outer main frame wheel cylinders and two wing wheel cylinders. Install pin and hair pin to hold in place.


A-Service Locks

A53394

Main Frame Service Locks

OUO6435,0001F64 -19-31JAN06-2/3

3. When servicing machines with drawbar hitch, either lower drawbar completely or raise drawbar completely and install service lock (A).


A-Service Lock

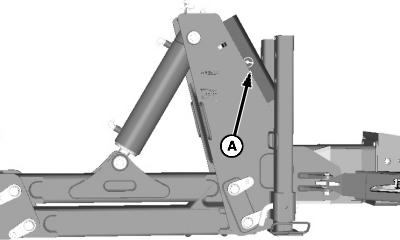

A52402

Drawbar Service Lock Storage Location

OUO6435,0001F64 -19-31JAN06-3/3
