Installing Service Locks 24 Row

causym CAUTION: Lower machine to ground before working on any hydraulic components or welding.

IMPORTANT: Service locks cannot be used as transport locks.

1. Remove service locks (A) from storage positions. Wing wheel locks are stored on top of wing wheel frame. Main frame locks are stored on the CCS ladder frame rails.


A-Service Locks

A49943

Main Frame Service Lock - Storage Position

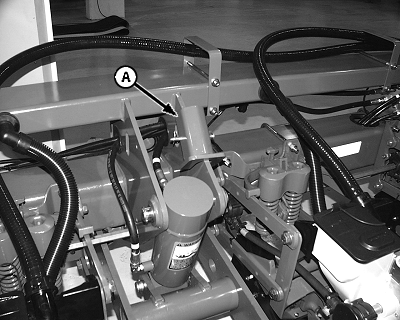

A53594

Wing Wheel Service Lock - Storage Position

OUO6435,0001F65 -19-27JUN08-1/3

IMPORTANT: Avoid machine damage. Tab (A) on service lock must be on top side against cylinder.

2. Install service locks onto both outer main frame wheel cylinders and outer wing wheel cylinders. Install pin and spring pin to hold in place.


A-Tab

A53401

Main Frame Service Locks

OUO6435,0001F65 -19-27JUN08-2/3

3. When servicing machines with drawbar hitch, either lower drawbar completely or raise drawbar completely and install service lock (A).


A-Service Lock

A52402

Drawbar Service Lock Storage Location

OUO6435,0001F65 -19-27JUN08-3/3
