Storing Machine

When planting is completed for one season, store the machine under cover with all parts in operating condition.

OUO6435,0001F77 -19-14FEB08-1/6

IMPORTANT: If the machine is stored in transport position, some settling of the hydraulic system may occur. If machine is stored in this position, install service locks on center two main frame wheels and lower machine onto service locks.

Remove main frame service locks (A) from storage position. Locks are stored on the CCS ladder frame rails.

A-Service Locks

OUO6435,0001F77 -19-14FEB08-2/6

IMPORTANT: Avoid machine damage. Flat plate on service lock must be on top side against cylinder.

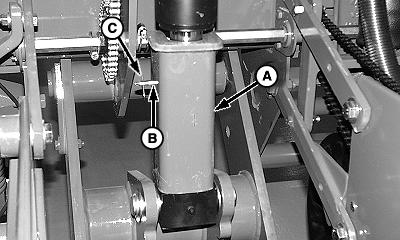

Raise machine and install service locks (A) as shown onto both outer main frame wheel cylinders. Install pin (B) and spring locking pin (C).

Lower machine onto service locks.

A-Service Lock
B-Pin
C-Spring Locking Pin

OUO6435,0001F77 -19-14FEB08-3/6

Install all plugs (A) into vacuum manifold bells (B).

A-Plugs
B-Manifold Bells

OUO6435,0001F77 -19-14FEB08-4/6

Paint all parts which are chipped or worn and require repainting.

IMPORTANT: High pressure washers can damage electrical components, bearings, hoses and hoppers if direct contact is applied. Use caution when power washing machine.

Clean and wash machine thoroughly.

Lubricate the machine as outlined in the Lubrication section, and grease exposed cylinder rods.

Thoroughly lubricate chains with TY6350 John Deere Multipurpose Spray Lube.

Empty and clean seed hoppers.

Clean insecticide and herbicide hoppers thoroughly.

Inspect the machine for worn, broken or damaged parts. Replace parts as needed.

Store the machine in a clean, dry place with the planting unit gauge wheels and firming wheels out of the sun.

Relieve all spring tension on closing wheels by placing handle in long slot.

Thoroughly flush liquid herbicide system with clean water. Disconnect from tractor and completely drain all lines and components to prevent damage from freezing.

OUO6435,0001F77 -19-14FEB08-5/6

Remove seed disks from meter. (See VACUUM METER INSPECTION AND SERVICE in Service-End of Season section.)

Clean meter housing, meter chamber and seed disk with mild detergent and soft brush.

Store disks (A) in shipping box or hang on wall.

IMPORTANT: Be sure to store seed disks away from extreme heat or direct sunlight. Do not leave disks in the meters during the off season. Do not store under heavy parts.

Clean air manifold system. (See CLEAN VACUUM MANIFOLD SYSTEM in Service-Every 50 Hours section.)

Check for hydraulic leaks.

Check and clean out manifolds.

Check and clean vacuum meters.

Check and replace necessary vacuum meter seals.

A-Disk

OUO6435,0001F77 -19-14FEB08-6/6
