Weighting Front End 24 Row

Refer to the following chart to calculate the implement code for your planter. Add the implement code values for the optional equipment your planter is equipped with to the implement code value for the base machine to determine the total implement code.

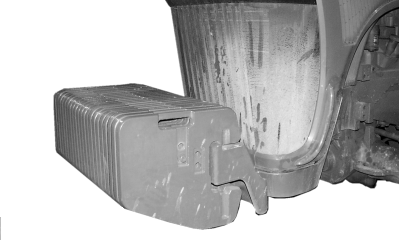

Install the proper amount of weight on the front of the tractor as recommended in your tractor operator's manual.

A50871

OUO6435,0001F82 -19-25JUN08-1/2

  Implement Code
Base Machine 7000 and 8000 Series Tractors 55 Series Tractors Hitch Weighta
Twenty-Four Row 76 cm (30 in.) Central Commodity System With PRO-SERIES™XP Row Units 455 435 4100 kg (9000 lb.)
Markers
Tri-Fold 52 50 450 kg (1000 lb.)
Less Markers
Wing Frame Assemblies
Four 11 x 22.5 Load Range F HI Flotation Tires 17 16 140 kg (300 lb.)
Row Unit Parallel Arms
Regular
Long 21 20 180 kg (400 lb.)
Liquid Tanks
Less Tank and Mounting Brackets
Insecticide Tank and Mounting Brackets 57 54 450 kg (1000 lb.)
Fertilizer Pump, Delivery System, and Openers
Less Pump, Delivery System, and Openers
Piston Pump, Flow Divider with Hoses and Frame Mounted Single Disk Fertilizer Openers 57 54 450 kg (1000 lb.)
Piston Pump, Flow Divider with Hoses, Less Openers
Piston Pump, Less Delivery System, Less Openers
Variable Rate Piston Pump, Flow Divider with Hoses and Frame Mounted Single Disk Openers 57 54 450 kg (1000 lb.)
Variable Rate Piston Pump, Flow Divider with Hoses, Less Openers
Variable Rate Piston Pump, Less Delivery System, Less Openers
aDrawbar hitch weight limits of 4536 kg (10,000 lb.) for 8000 series and 4990 kg (11,000 lb.) for 9000 series tractors.



See your John Deere dealer for proper front-end weighting.

OUO6435,0001F82 -19-25JUN08-2/2
