Half Screen Layout

NOTE: Half screen layout and multiple home pages are only available when John Deere ™ SeedStar™ 2 Monitor is used with a John Deere™ Greenstar™2 (GS2) display.

NOTE: Half screen layout must be set using layout manager.

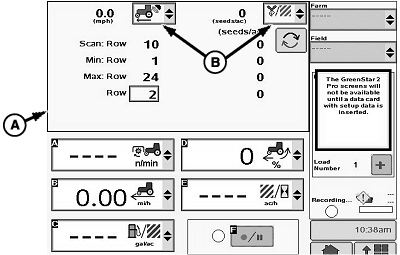

Planter screens only appear as full screen or half screen (A). When half screen layout is selected, less information is presented in screen area. Error messages do not appear on half screen. Return to full screen mode to view error messages when an audio alert signals an error.

To set up screen layout (see SCREEN LAYOUT MANAGER in How to Use Monitor section).

To enter full screen mode and access configuration, totals, and diagnostic softkeys, select Menu >> Planter application button.

A-Half Screen
B-Counter and Speed Options

John Deere is a trademark of Deere & Company

LD45720,0000009 -19-23JUL08-1/1
