Adjust Motion Sensor Gap-All Planters Except 1770NT, 1790, and Deere/Bauer

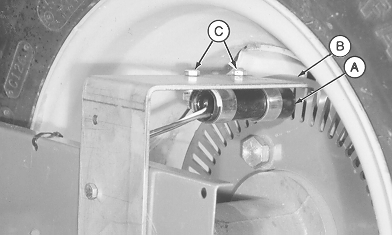

IMPORTANT: Avoid damage to sensor. Rotate wheel to ensure no contact between disk (B) and end of sensor (A).

Loosen cap screws (C). Adjust position of wheel motion sensor (A) until space between end of sensor and disk (B) is 2-4 mm (0.08-0.16 in.). Tighten two cap screws (C).

A-Motion Sensor
B-Disk
C-Cap Screws
