Check Implement Width in Performance Monitor

Performance Monitor is a GreenStar 2 display function and is integrated with the SeedStar 2 monitoring system. The implement width is sent to Performance Monitor on startup and cannot be changed as long as the planter is connected to the tractor.

IMPORTANT: If implement width is changed in the planter application, for example when changing from corn to soybeans on a split row planter, cycle power to the display for new settings to take effect.

To view current width in Performance Monitor, select Menu >> Performance Monitor >> Settings softkey.

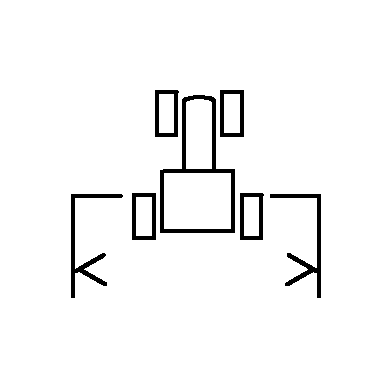

Implement width appears next to implement width icon.

OUO6045,000003D -19-29JUL08-1/1
