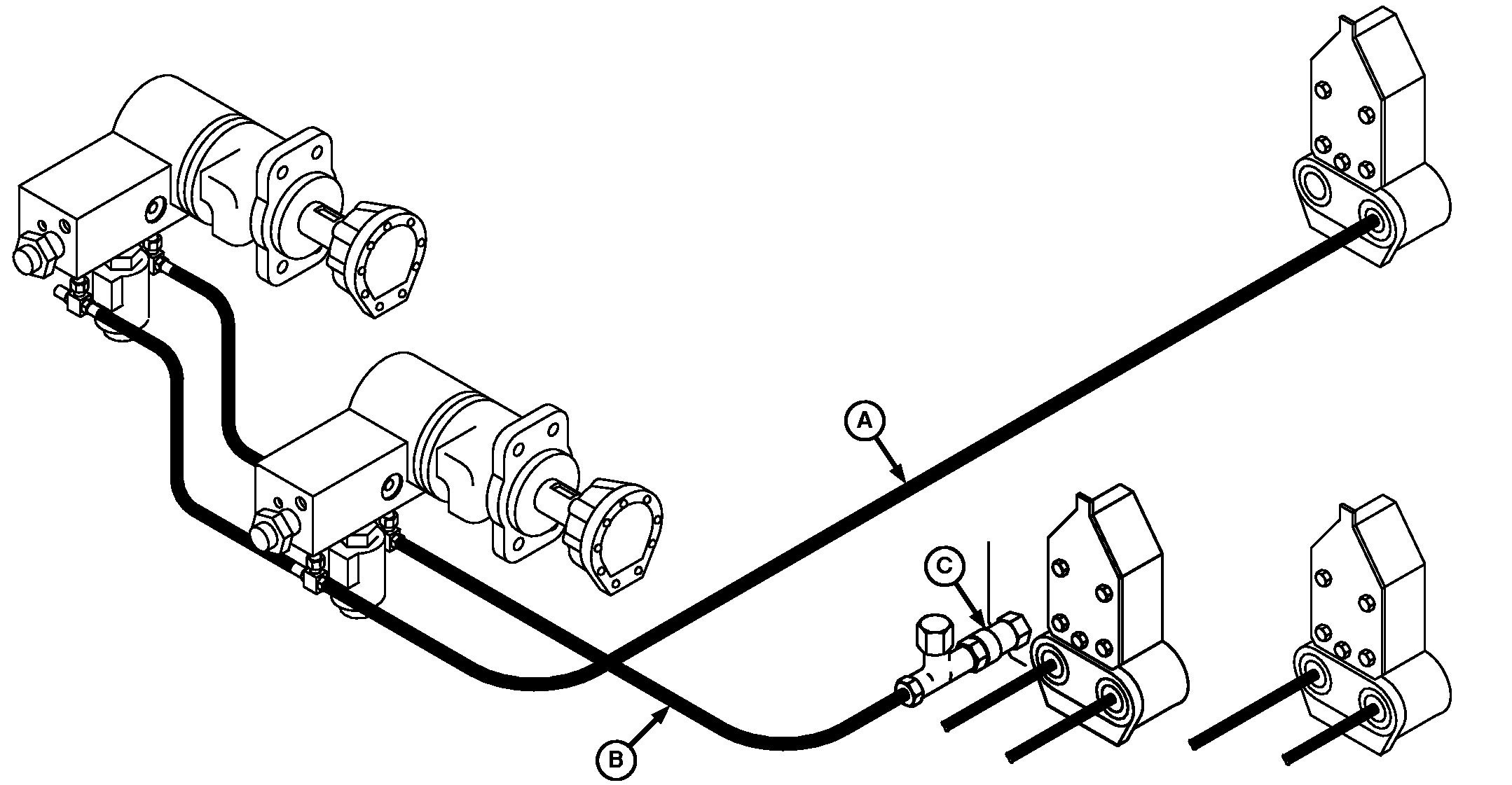

30-40 Series Tractors Without Power Beyond-Dual Motor

A47217


A-Variable Drive Pressure Hose

B-Variable Drive Return Hose

C-Auxiliary Return Port



1. Attach variable drive pressure hose (A) from variable rate motor to right-hand (cylinder retract) side of SCV.

2. Attach variable drive return hose (B) into auxiliary return port (C).
