50-70 Series Tractors Without Power Beyond-Single Motor
|

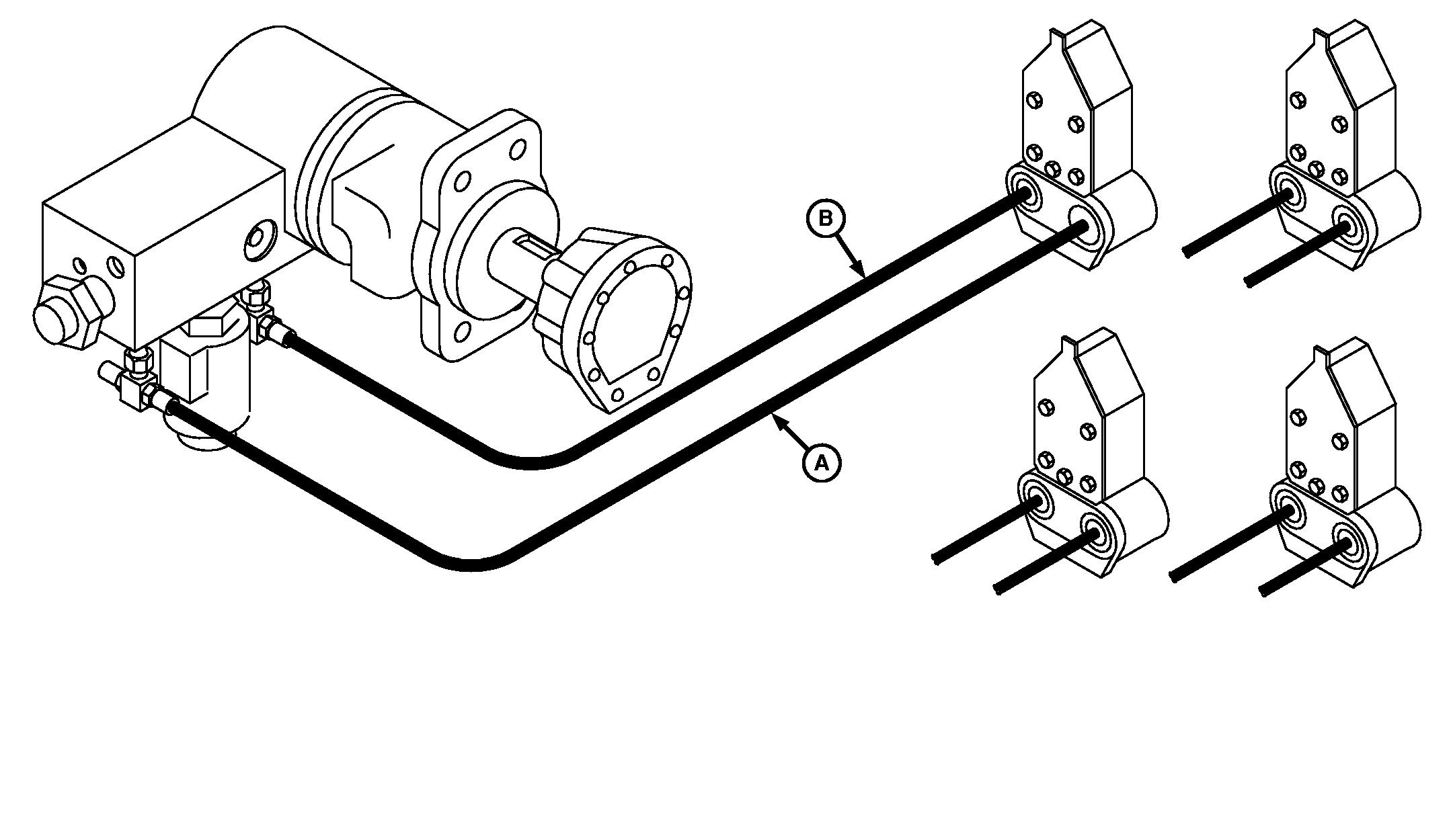

| 1. Attach variable drive pressure hose (A) from variable rate motor to right-hand (cylinder retract) side of SCV. |
2. Attach variable drive return hose (B) from variable rate motor to left-hand (cylinder extend) side of SCV. |
OUO6074,0000584 -19-09AUG02-1/1 |
