6000 Series Tractors With Power Beyond Load Sense-Dual Motor

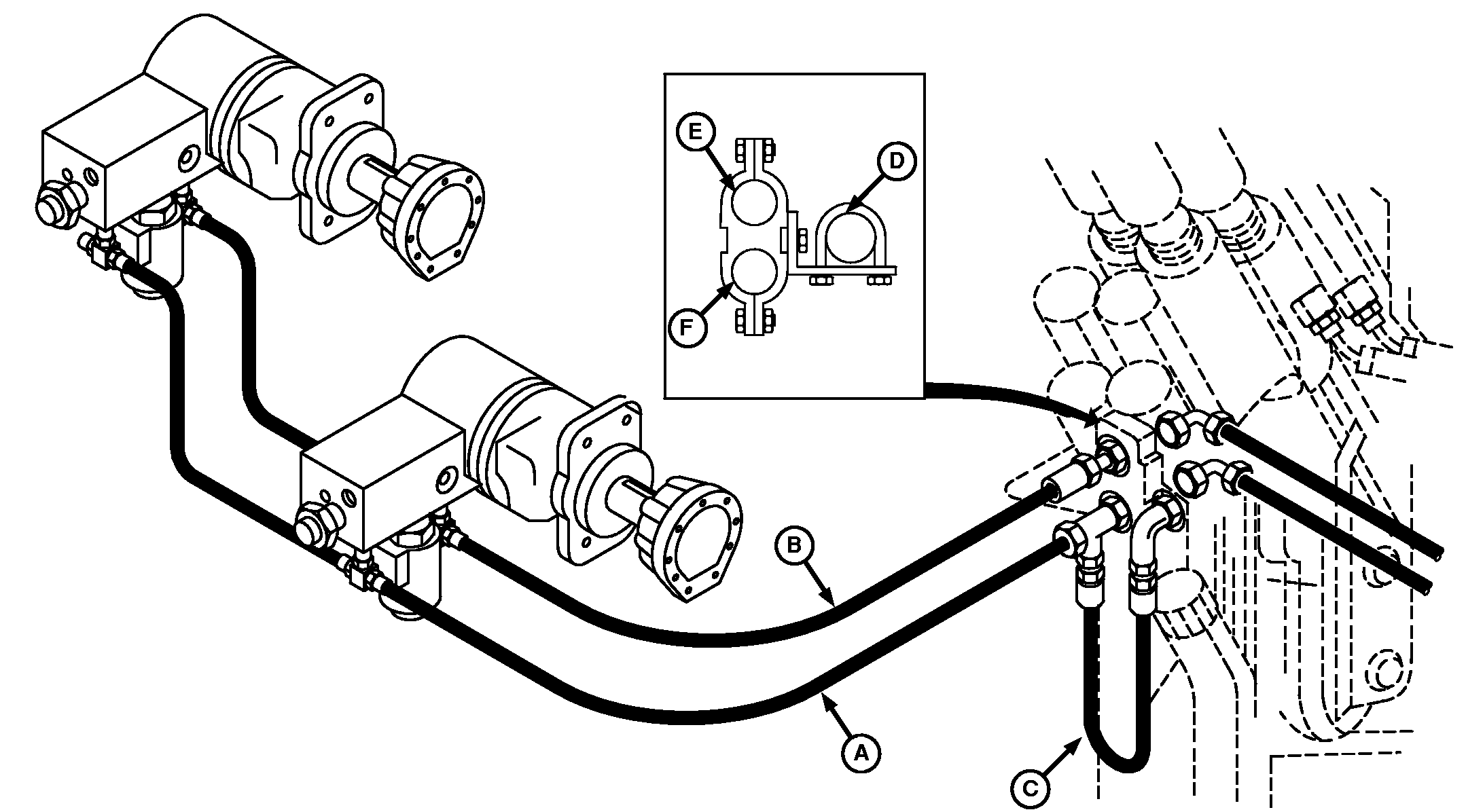

A47211


A-Variable Drive Pressure Hose
B-Variable Drive Return Hose


C-Jumper Hose
D-Power Beyond Load Sensing Port


E-Power Beyond Return Port


F-Power Beyond Pressure Port

1. Attach variable drive pressure hose (A) and tee fitting to power beyond pressure port (F).

2. Attach variable drive return hose (B) to power beyond return port (E).

3. Attach jumper hose (C) to power beyond load sensing port (D) and pressure hose tee fitting.

OUO6074,0000589 -19-09AUG02-1/1
