Variable Rate Fertilizer Warnings

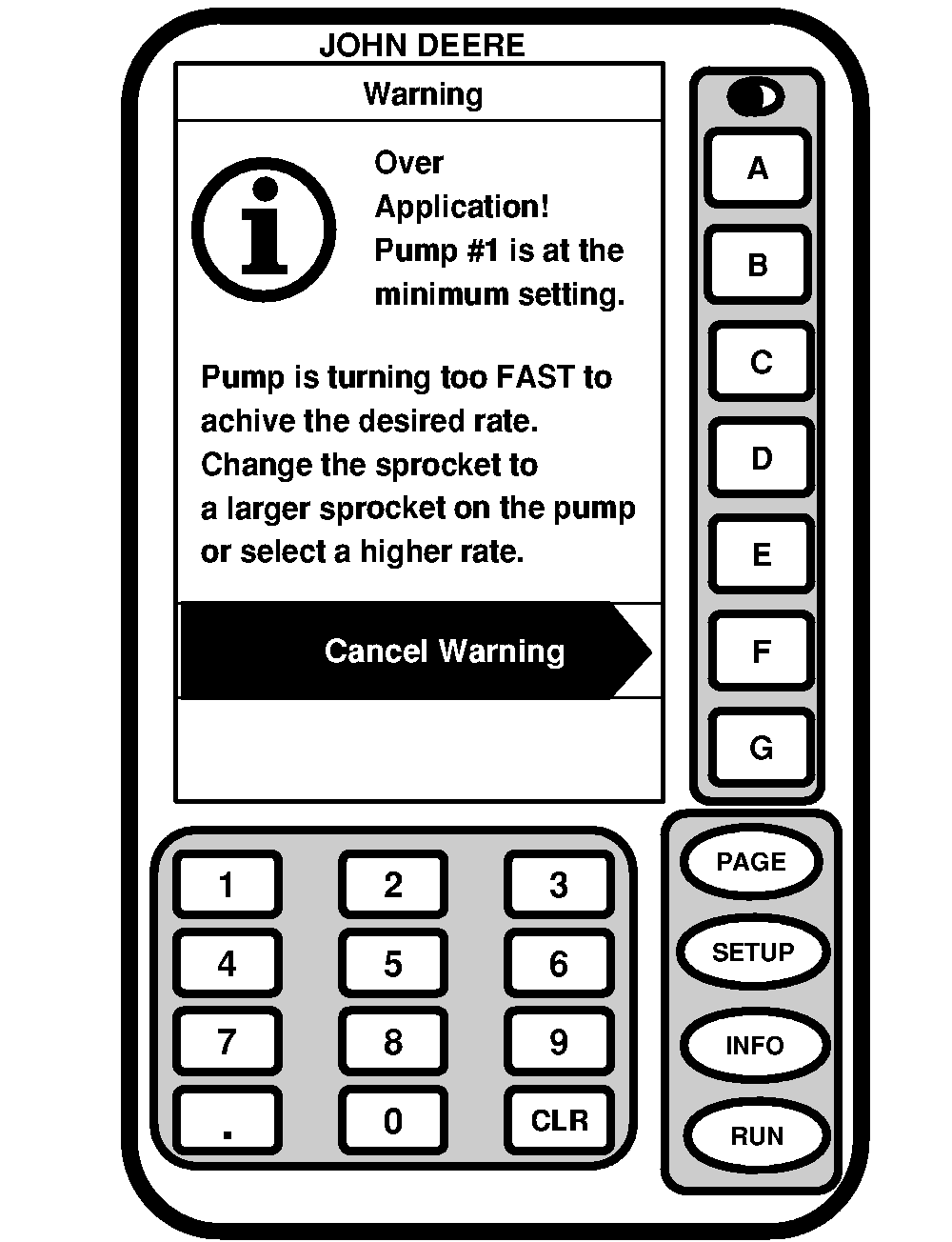

WARNING: Over Application!
NOTE:
This warning will be followed by a "Over Application! Pump #1 at min. setting." caution on line "G".
This warning is issued if the pump adjusts to its lowest setting and is still overapplying. The large sprocket should be installed to change the pump speed range or a higher rate should be selected. There is a caution associated with this warning. When the warning is cleared there is a caution issued.
|
|
|
|
OUO6074,000068C -19-01NOV07-1/7
|

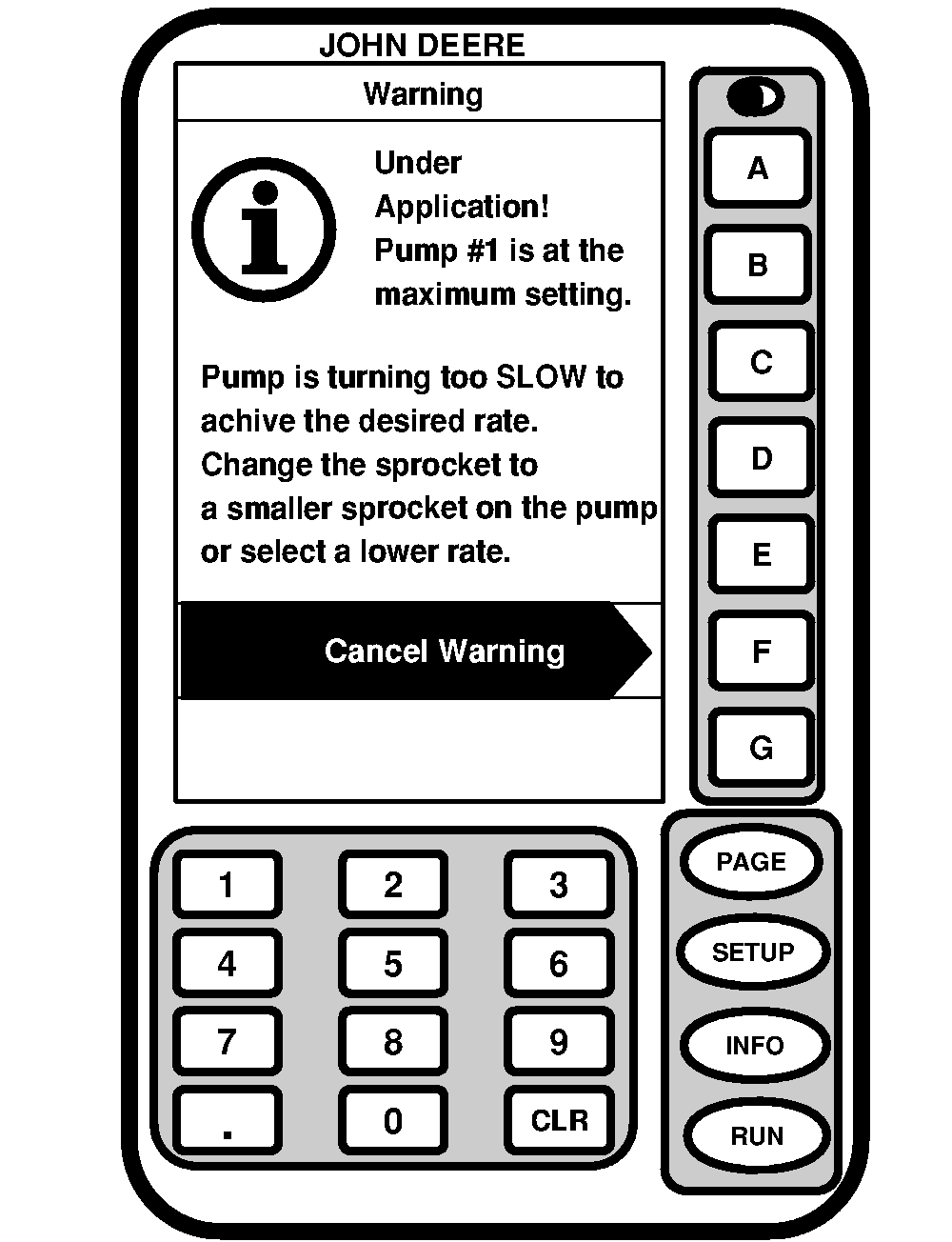

WARNING: Under Application!
NOTE:
This warning will be followed by a "Under Application! Pump #1 at max. setting." caution on line "G".
This warning is issued if the pump adjusts to its highest setting and is still underapplying. The small sprocket should be installed to change the pump speed range or a lower rate should be selected. There is a caution associated with this warning. When the warning is cleared there is a caution issued.
|
|
|
|
OUO6074,000068C -19-01NOV07-2/7
|

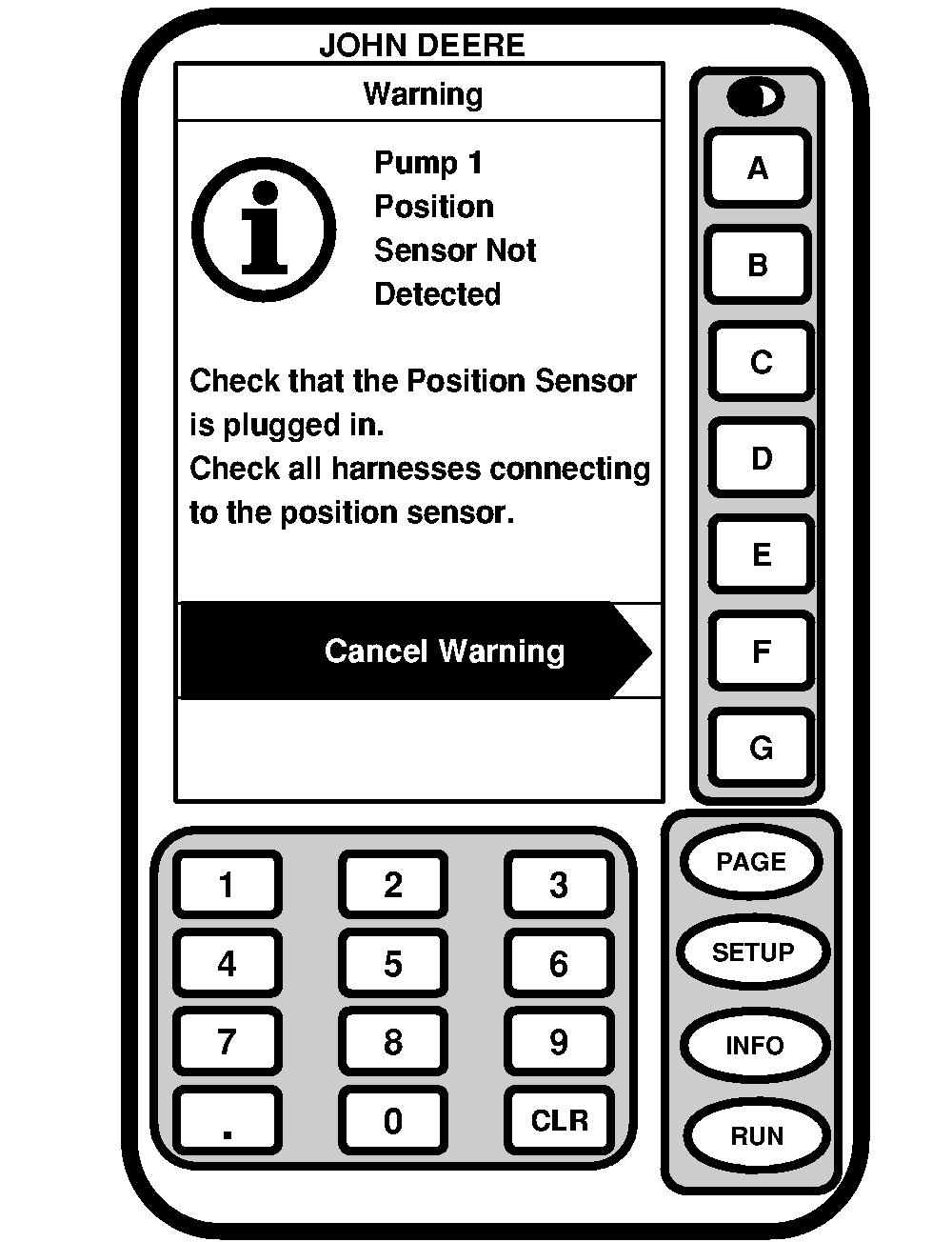

WARNING: Pump Position Sensor Not Detected
NOTE:
This warning will be followed by a "Pump Sensor Fail." caution on line "G".
This warning is issued if no signal is received from the pump position sensor. There is a caution associated with this warning. When the warning is cleared there is a caution issued.
|
|
|
|
OUO6074,000068C -19-01NOV07-3/7
|

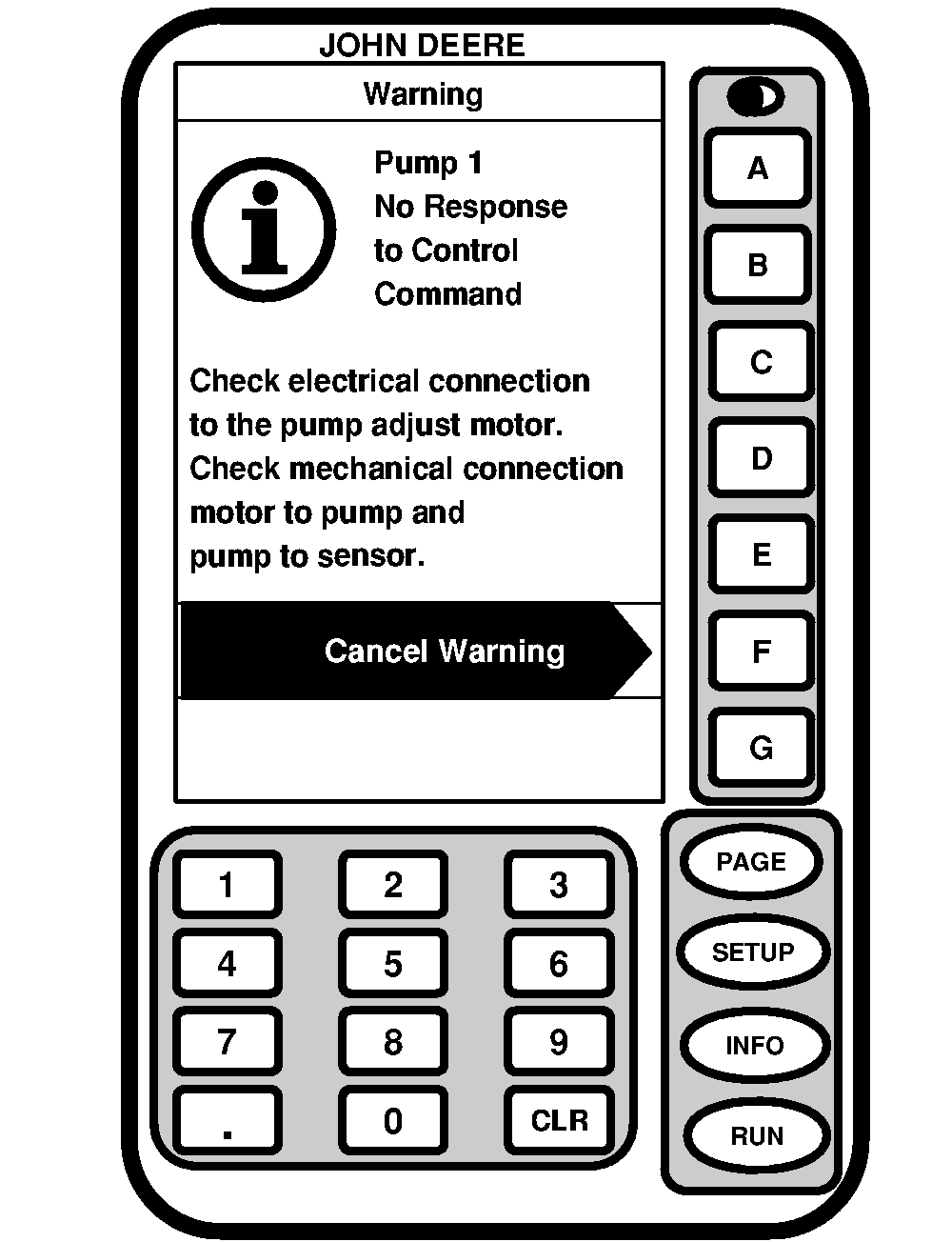

WARNING: No Pump Response To Control Command
NOTE:
This warning will be followed by a "Pump not responding. Check System." caution on line "G".
This warning is issued if no signal is received from the pump adjustment motor. There is a caution associated with this warning. When the warning is cleared there is a caution issued.
|
|
|
|
OUO6074,000068C -19-01NOV07-4/7
|

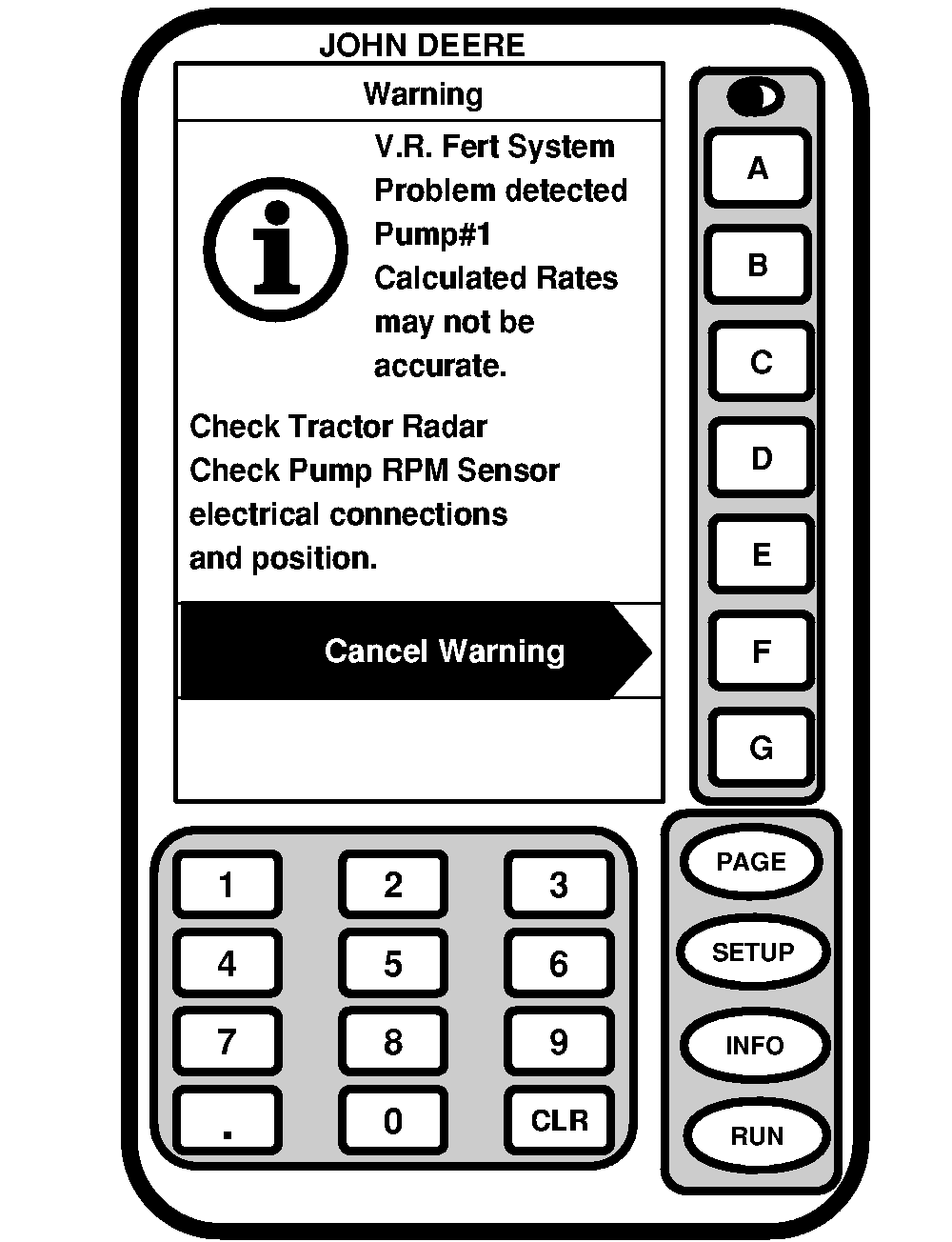

WARNING: V.R. Fert System Problem. Calculated rates may not be accurate.
NOTE:
This warning will be followed by a "Pump #1 Calculated Rate more than 10% off Target." caution on line "G".
This warning is issued if calculated rate is more than 10 percent off target rate. There is a caution associated with this warning. When the warning is cleared there is a caution issued.
|
|
|
|
OUO6074,000068C -19-01NOV07-5/7
|

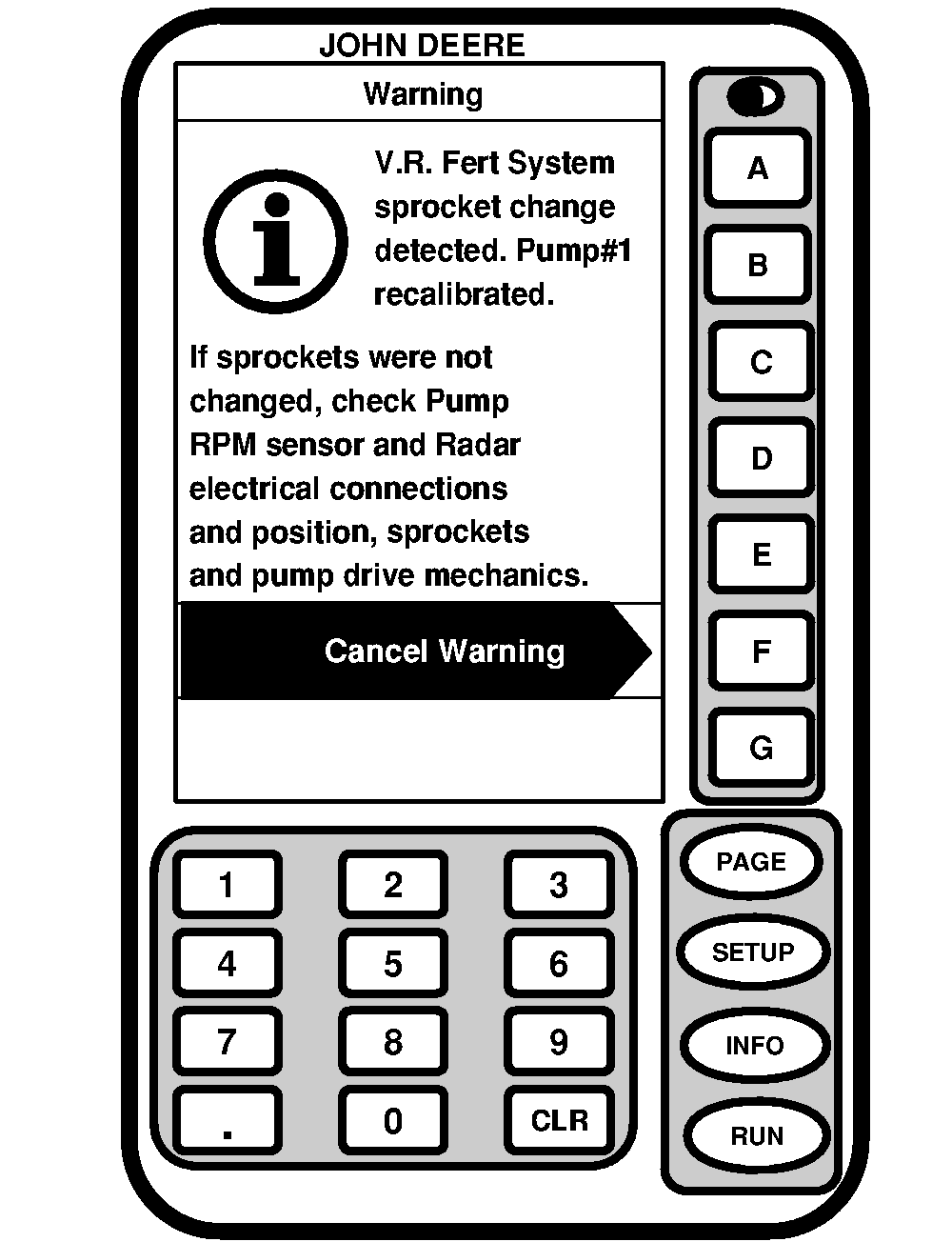

WARNING: V.R. Fert. System sprocket change detected.
NOTE:
This warning will be followed by a "Pump #1 sprocket change detected" caution on line "G".
This warning is issued if the pump application changes without a sensor detecting motor adjustment. There is a caution associated with this warning. When the warning is cleared there is a caution issued.
|
|
|
|
OUO6074,000068C -19-01NOV07-6/7
|

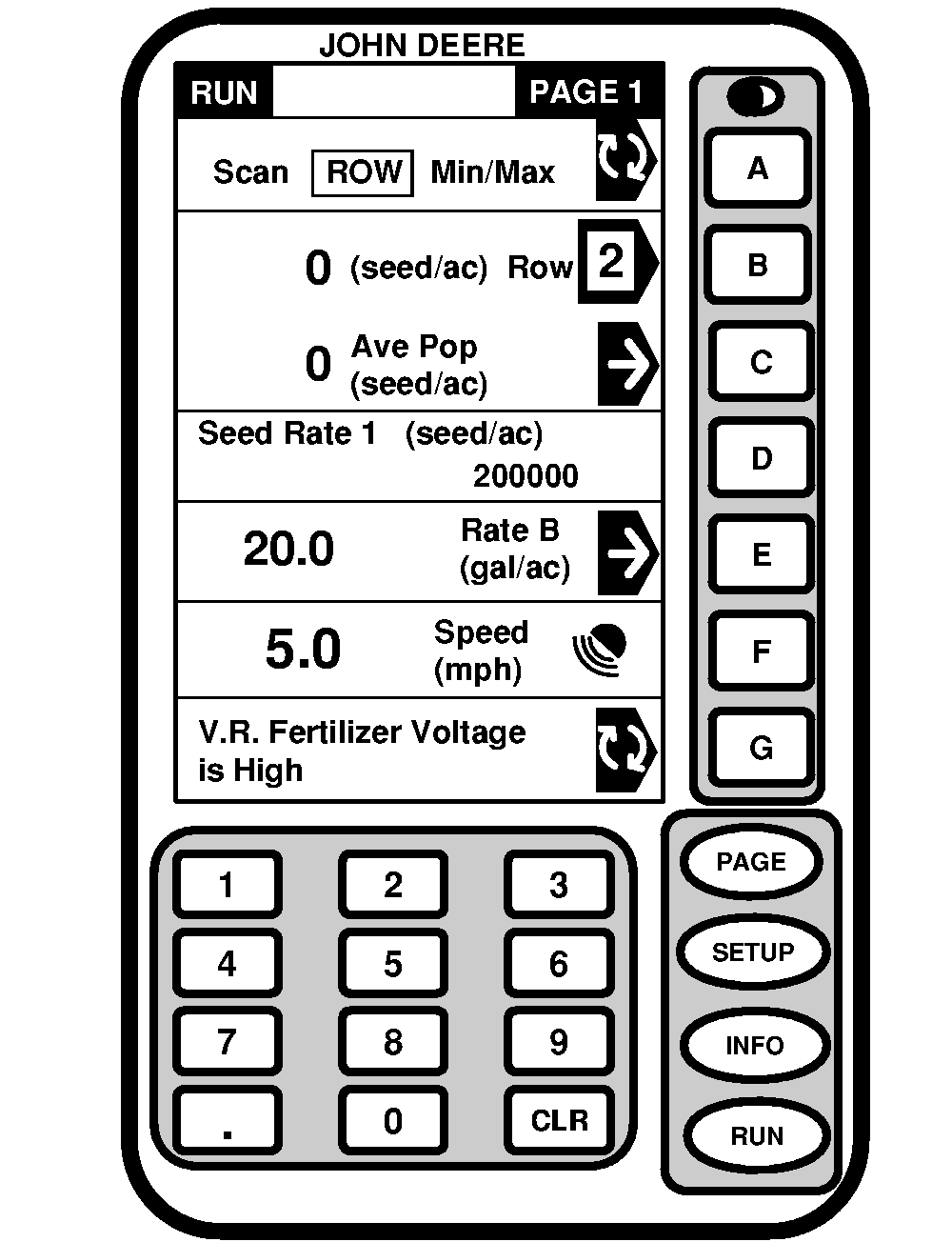

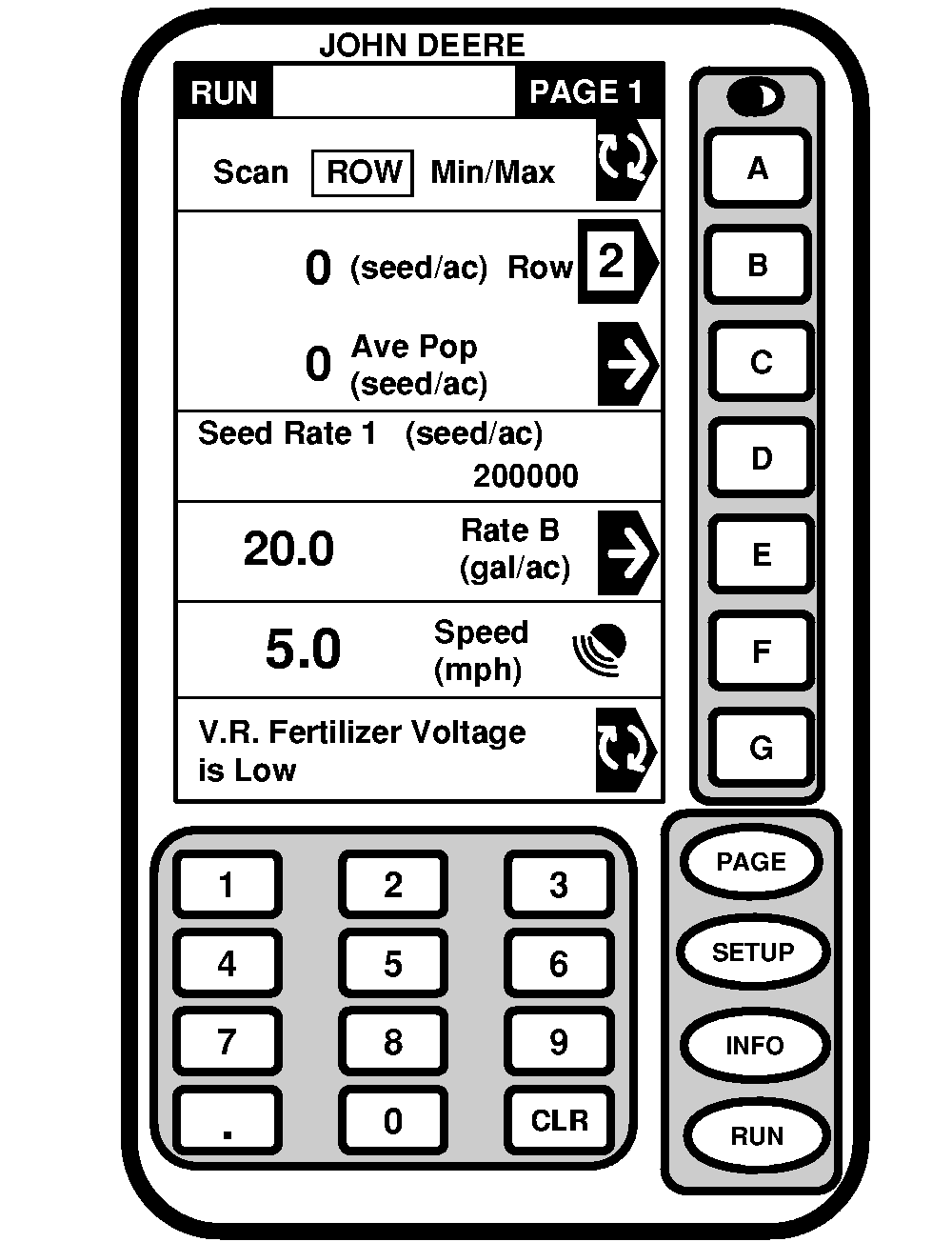

CAUTION: V.R. Fertilizer High/Low Voltage
This caution is issued if variable rate fertilizer voltage is too high or too low.
|
|
|
|
OUO6074,000068C -19-01NOV07-7/7
|
|
