Vacuum Sensor Calibration

NOTE: This option is only visible if machine is configured for one or more sensors.

1. Select Menu >> Planter button >> Configuration softkey >> Sensor tab.

2. Select Vacuum from drop down box.

3. Select each sensor, one at a time, from the Sensor drop down box.

4. Select Cal Value input box and enter the number of inches of water displayed per volt from the vacuum sensor. John Deere ™ planters with factory equipped sensors have a calibration value of 5.66.

NOTE: Current pressure is displayed on bottom left of screen.

5. Shut off vacuum hydraulics and select the Zero Sensor button.

Screen Area Information

Planter Configuration Planter Configuration Sensor Sensor Vacuum Vacuum Cal Value Calibration Value Turn Vacuum Off Turn Vacuum Off Select Select
A59551

Planter Button

A59172

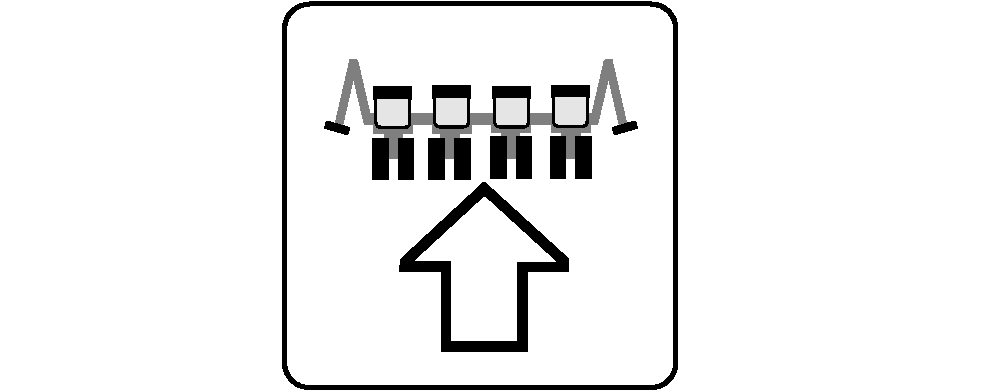

Configuration Softkey

A59369

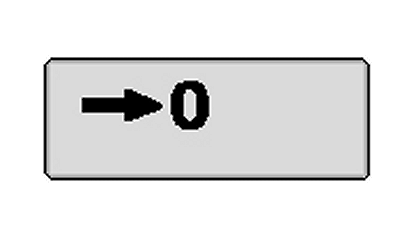

Zero Sensor Button

John Deere is a trademark of Deere & Company

OUO6074,0000F86 -19-23JUL08-1/1
