Controller Hardware, Software, and Part Number Identification

There are separate hardware and software versions for the display and each controller. Use the version to identify machine controllers for your dealer. Keep both the display and planter controller(s) updated with the latest software version for best performance and latest features. Software updates are only available through your John Deere ™ dealer.

Select Menu >> Planter Button >> Diagnostic softkey >> Readings tab.

Select Hardware / Software from top drop down box.

Select Main or Auxiliary from second drop down box to view data from each controller. Auxiliary is only an option if there is more than one controller installed on the machine.

  • Hardware serial number and part number are displayed.
  • Serial number is also on a tag (A) attached to controller.
  • Software part number and version number are displayed.
  • Total hour meter for controller is at bottom of screen.

Screen Area Information

Planter Diagnostics Planter Diagnostics Readings Readings Hardware / Software Hardware / Software Main Main Auxiliary Auxiliary Hardware Part # Hardware Part number Planter Planter Hardware Serial # Hardware Serial number Software Part # Software Part number Software Version # Software Version number Hour Meter Hour Meter h Hours
A59551

Planter Button

A59567

Diagnostic Softkey

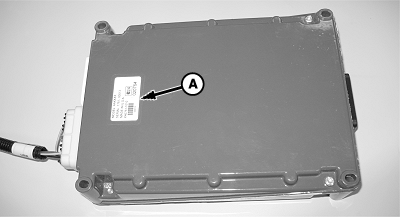

A61129

Controller


A-Serial Tag

John Deere is a trademark of Deere & Company

OUO6074,0000FB9 -19-23JUL08-1/1
