Install and Remove Standard Flush Face Seed Tubes

NOTE: Place harness connector inside planting unit at same time as seed tube.

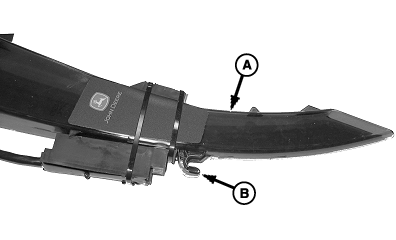

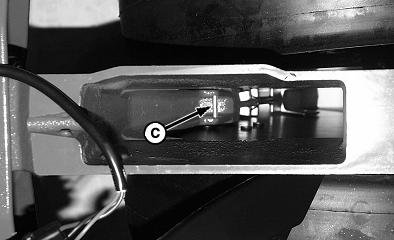

2. Insert seed tube (A) into planting unit so the hook (B) locks on alignment pin (C).

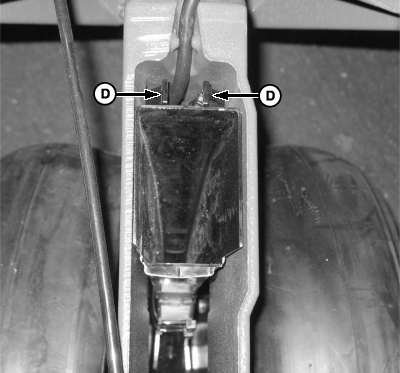

3. Position seed tube so tabs (D) lock into holes.

4. To remove seed tube, squeeze tabs with fingers until they release from casting. Pull upward.

A-Seed Tube
B-Hook
C-Pin
D-Tabs
