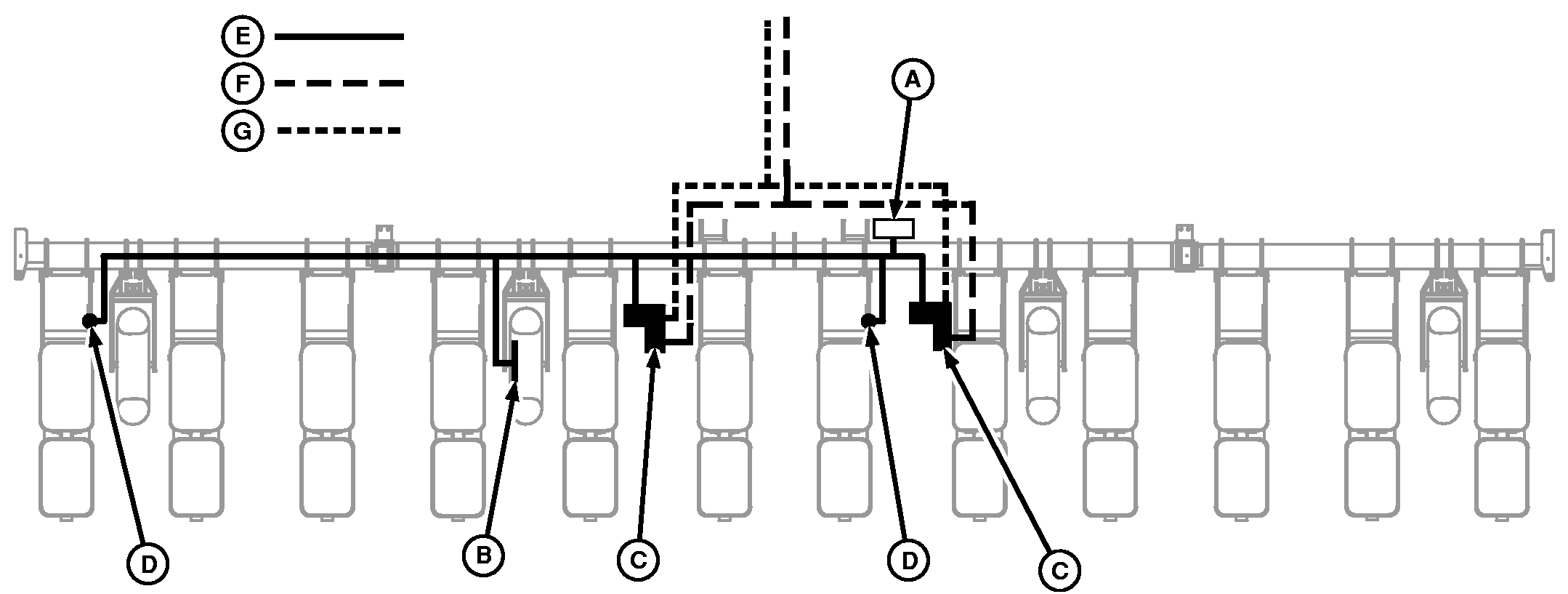

Component Locations-1710 12 Row Planter with Dual Motors

A61071


A-Controller
B-Motion Sensor


C-VRD Motor
D-Height Sensor


E-Electrical
F-Hydraulic Pressure


G-Hydraulic Return

OUO6074,000104C -19-10OCT07-1/1
