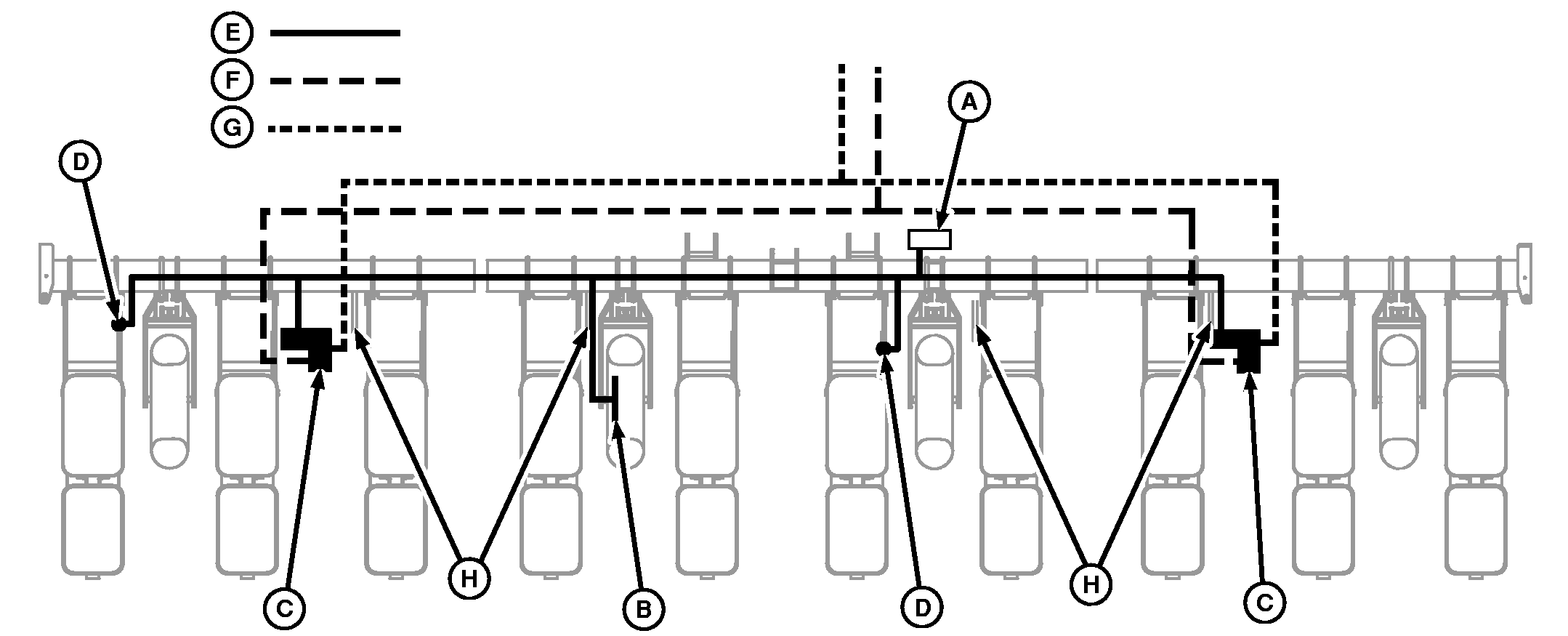

Component Locations-1720 10 Row 97 and 102 cm (38 and 40 in.) Planters with Dual Motors

A61074


A-Controller
B-Motion Sensor


C-VRD Motor
D-Height Sensor


E-Electrical
F-Hydraulic Pressure


G-Hydraulic Return
H-Reversed Idlers

OUO6074,000104F -19-10OCT07-1/1
