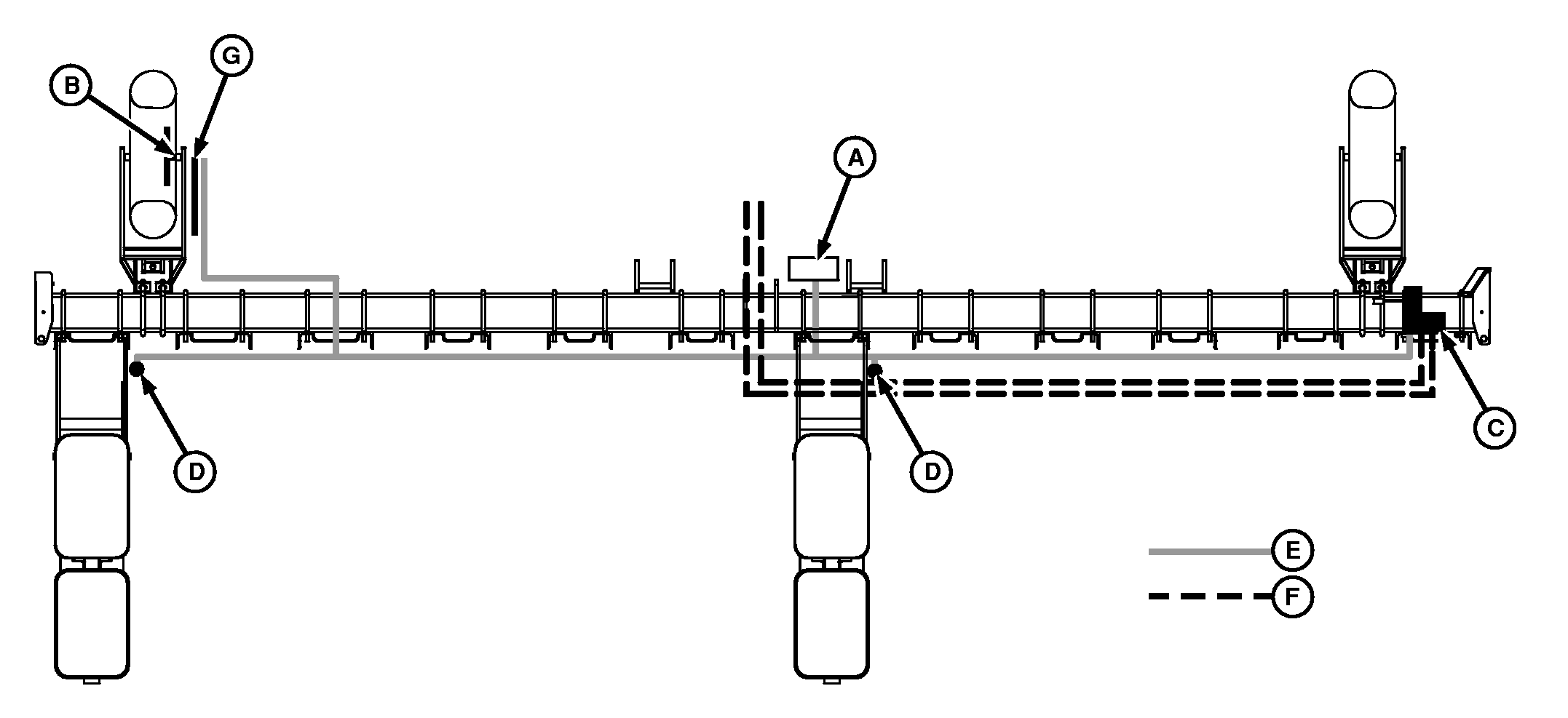

Component Locations-1730 Planter

A61079

A-Controller
B-Motion Sensor

C-VRD Motor
D-Height Sensor

E-Electrical
F-Hydraulic

G-Shield
