OMA87553: SeedStar™ 2 Monitor, Block File: OUO6074_000105A_19_10OCT07.htm

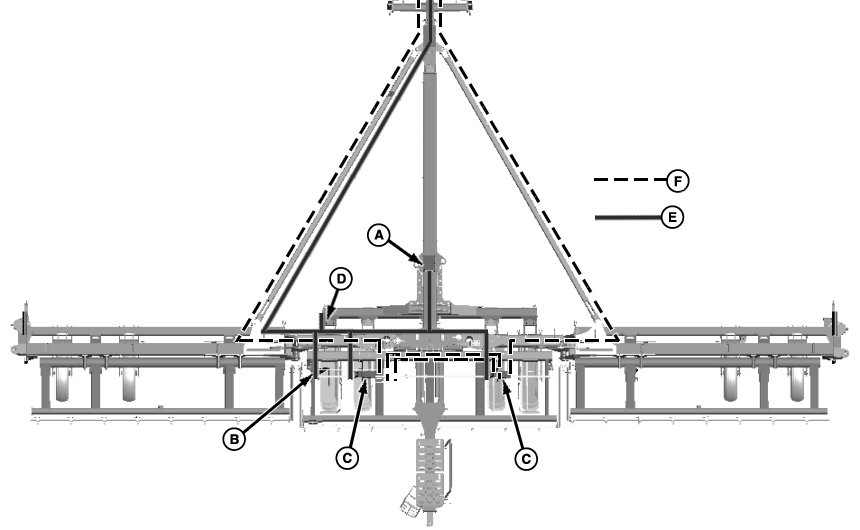

Component Locations-1790 24R20

A61091

A-Controller
B-Motion Sensor

C-VRD Motor
D-Height Sensor

E-Electrical

F-Hydraulic

OUO6074,000105A -19-10OCT07-1/1
