Warning Screens

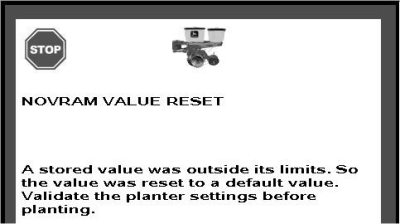

NOVRAM VALUE RESET

A stored value was outside its limits. The value was reset to a default value. Validate the planter settings before planting.

OUO6074,000107E -19-17NOV08-1/37

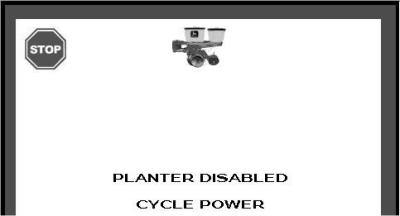

PLANTER DISABLED CYCLE POWER

Planter is not operational. To restore operation, cycle power.

OUO6074,000107E -19-17NOV08-2/37

Pressing the continue button resets the system values to default values and requires power cycling the system.

Confirms prior actions taken before storing values when power is cycled.

OUO6074,000107E -19-17NOV08-3/37

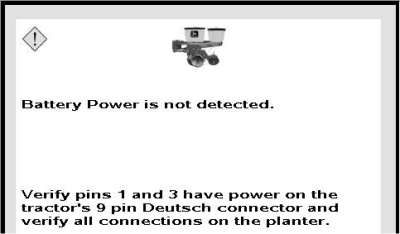

Battery power is not detected.

Verify pins 1 and 3 have power on the tractor 9 pin DEUTSCH connector and verify all connections on the planter.

Power is required on Pins 1 & 3 for normal operation.

OUO6074,000107E -19-17NOV08-4/37

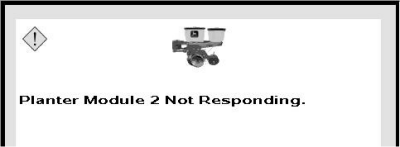

Planter module 2 not responding.

Controller PA1 is not communicating. Verify all planter electrical connections are latched securely and harnesses are not damaged.

OUO6074,000107E -19-17NOV08-5/37

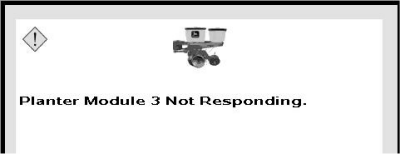

Planter module 3 not responding.

Controller PA2 is not communicating. Verify all planter electrical connections are latched securely and harnesses are not damaged.

OUO6074,000107E -19-17NOV08-6/37

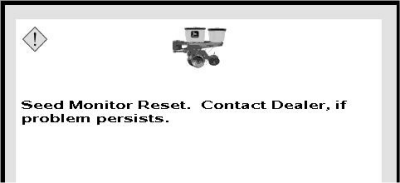

Seed monitor reset. Contact dealer, if problem persists.

Intermittent communication problems exist. Verify all planter electrical connections are latched securely and harnesses are not damaged.

OUO6074,000107E -19-17NOV08-7/37

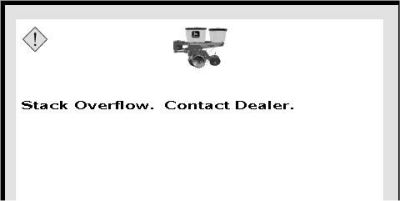

Stack overflow. Restart controller. If problem persists contact dealer.

OUO6074,000107E -19-17NOV08-8/37

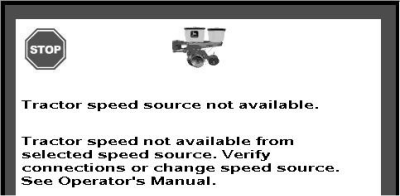

Tractor speed source not available.

Tractor speed not available from selected speed source. Verify connection or change speed source. See operator's manual.

OUO6074,000107E -19-17NOV08-9/37

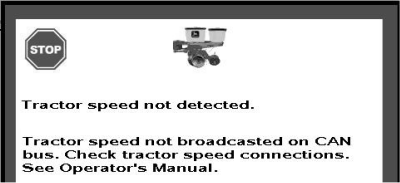

Tractor speed not detected. Tractor speed not broadcasted on CAN Bus. Check tractor speed connections. See tractor operators manual.

OUO6074,000107E -19-17NOV08-10/37

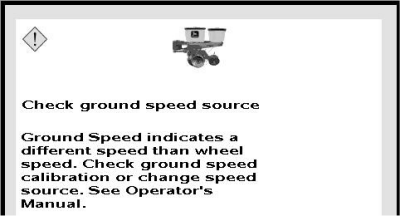

Check ground speed source.

Ground speed indicates a different speed than tractor ground speed. Check ground speed calibration or tractor speed source. See operator's manual.

OUO6074,000107E -19-17NOV08-11/37

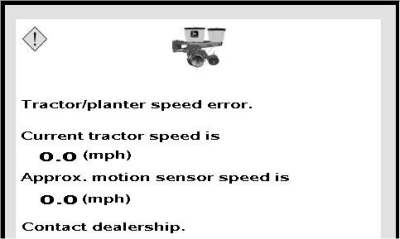

Tractor or planter speed error.

Current tractor speed is 0.0

Approximate motion sensor speed is 0.0

Contact dealer.

OUO6074,000107E -19-17NOV08-12/37

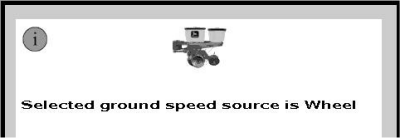

Selected ground speed source is wheel.

Use radar for VRD and seed monitoring for best results.

OUO6074,000107E -19-17NOV08-13/37

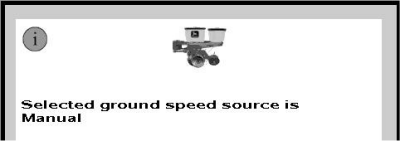

Selected ground speed source is manual.

Use radar for VRD and seed monitoring for best results.

OUO6074,000107E -19-17NOV08-14/37

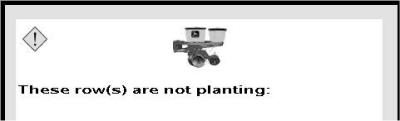

These rows are not planting.

Ground speed is above two mph. Less than two seeds per second are acknowledged by seed sensor.

OUO6074,000107E -19-17NOV08-15/37

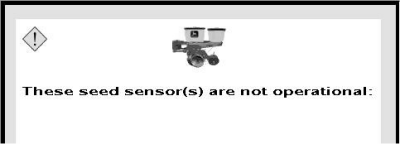

These seed sensors are not operational.

Perform seed sensor test or exchange with an operational sensor.

OUO6074,000107E -19-17NOV08-16/37

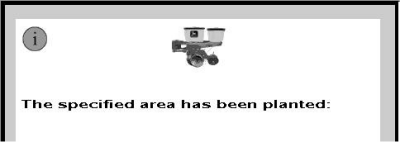

The specified area has been planted.

Navigate to Totals screen to reset area.

OUO6074,000107E -19-17NOV08-17/37

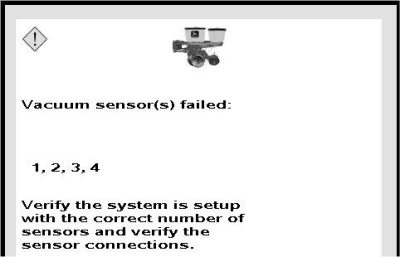

Vacuum sensor or circuit failure.

Verify that the system is set up with the correct number of sensors and verify the sensor connections.

OUO6074,000107E -19-17NOV08-18/37

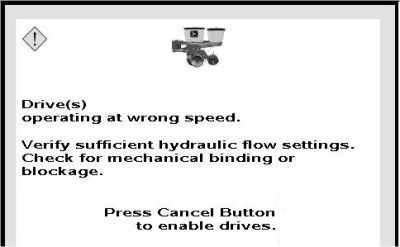

Drives operating at wrong speed.

Verify sufficient hydraulic flow settings. Check for mechanical binding or blockage. Press cancel button to enable drives.

OUO6074,000107E -19-17NOV08-19/37

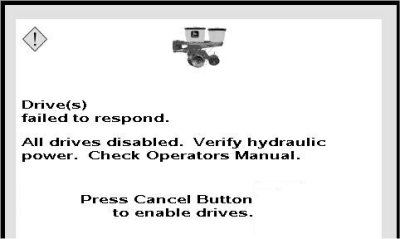

Drives failed to respond.

All drives disabled. Verify hydraulic power and VRD sensor connections. Check operator's manual. Press cancel button to enable drives.

OUO6074,000107E -19-17NOV08-20/37

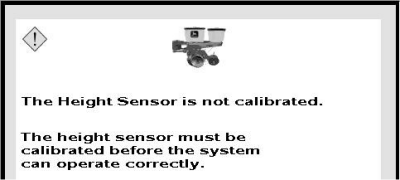

The height sensor is not calibrated.

The height sensor must be calibrated before the system operates correctly.

Refer to height sensor calibration procedures in SETUP BASIC PLANTER CONFIGURATION section of this manual.

OUO6074,000107E -19-17NOV08-21/37

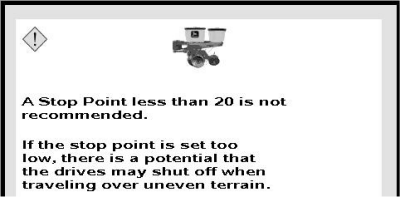

A stop point less than 20 is not recommended.

If the stop point is set too low, there is potential for the drives to shut off when traveling over uneven terrain.

OUO6074,000107E -19-17NOV08-22/37

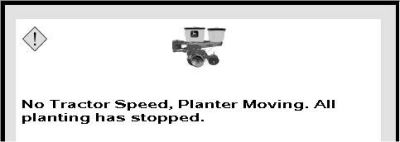

No tractor speed and planter moving. All planting has stopped.

Verify ground speed sensor status.

OUO6074,000107E -19-17NOV08-23/37

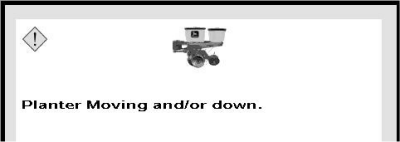

Planter moving. Planter down.

Warning appears when using "Rotate Seed Meter" feature which requires planter, stopped and raised. Stop tractor and planter movement then raise the planter.

OUO6074,000107E -19-17NOV08-24/37

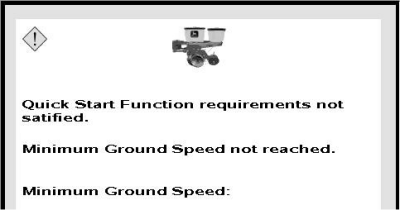

Quick start function requirements not satisfied.

Minimum ground speed not reached.

Increase or verify tractor speed.

OUO6074,000107E -19-17NOV08-25/37

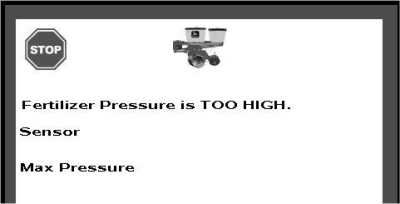

Fertilizer pressure is too high.

Sensor number:

Maximum pressure has exceeded operator entered value.

OUO6074,000107E -19-17NOV08-26/37

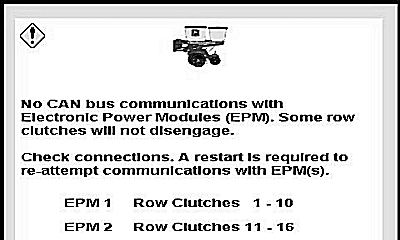

No CAN Bus communications with Electronic Power Modules (EPM). Some row clutches will not disengage.

Check connections. A restart is required to reattempt communications with EPMs.

Warning screen lists EPMs that are currently offline. Control section status bars associated with offline EPMs disappear from Main run page and half-page split run page.

OUO6074,000107E -19-17NOV08-27/37

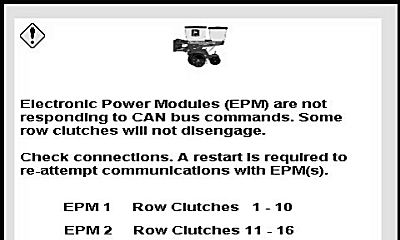

Electronic Power Modules (EPM) are not responding to CAN Bus commands. Some row clutches will not disengage.

Check connections. A restart is required to reattempt communications with EPMs.

Warning screen lists EPMs that are currently not communicating.

OUO6074,000107E -19-17NOV08-28/37

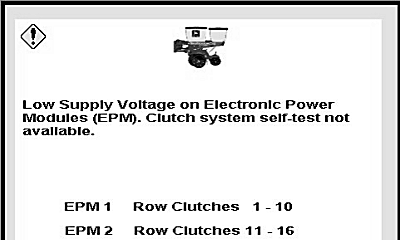

Low Supply Voltage on Electronic Power Modules (EPM). Clutch system self-test is not available.

Warning screen lists EPMs with supply voltage less than 10.5 V.

OUO6074,000107E -19-17NOV08-29/37

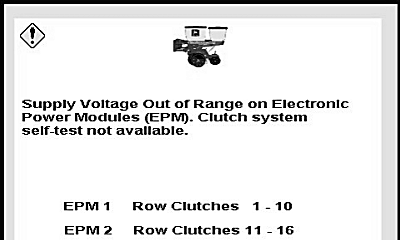

Supply Voltage Out of Range on Electronic Power Modules (EPM). Clutch system self-test is not available.

Warning screen lists EPMs with supply voltage less than 9.0 V.

OUO6074,000107E -19-17NOV08-30/37

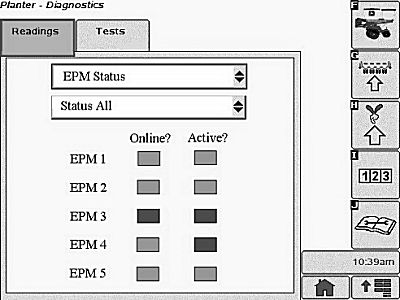

EPM Status Summary Page.

This screen lists the current status for each EPM that is required for the current row configuration.

If the EPM is Online, the status box appears in green. If not online, the status box is red.

If the EPM is Active, the status box appears in green. If not active, the status box is red.

OUO6074,000107E -19-17NOV08-31/37

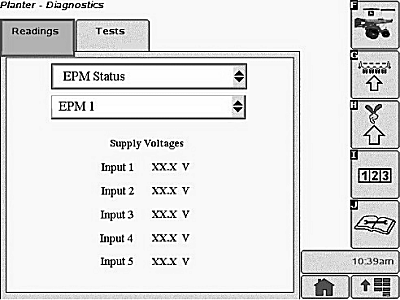

Individual EPM Status Page.

This screen lists the voltage reading from each power supply input to the EPM, as an average over approximately 3 seconds. If no readings are received from the device in 3 seconds, the reading is "- -"

OUO6074,000107E -19-17NOV08-32/37

Row Clutch Diagnostic Tests.

This screen appears when the operator selects the "Tests" tab on the diagnostics screen and the EPM is not available for one of the following reasons:

• EPM is offline
• EPM is not communicating
• EPM input voltage is out of range

OUO6074,000107E -19-17NOV08-33/37

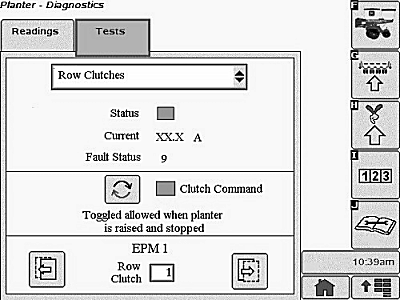

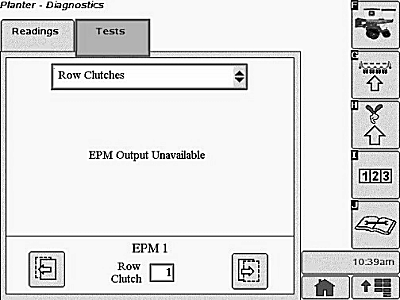

This screen appears when the operator selects the "Tests" tab on the diagnostics screen and EPM output is available.

Status information derived from the driver status CAN message is displayed.

If the driver output monitor is ON, the status box appears in green.

If the driver output monitor is OFF, the status box appears in red.

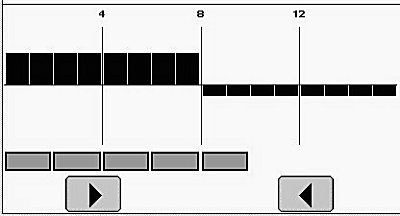

The button in the center of the page is used to toggle rows on or off when the planter is stopped and raised.

The forward and backward arrows at the bottom of the page are used to toggle between row clutches.

OUO6074,000107E -19-17NOV08-34/37

Row Clutch Diagnostic Self-test at Startup.

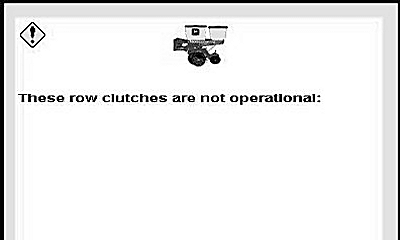

Once EPMs are determined to be online and communicating, system performs test and indicates "These row clutches are not operational", followed by a list.

OUO6074,000107E -19-17NOV08-35/37

NOTE: Under the diagnostic tab, the perform Self-test icon does not appear, unless planter is raised over height set point.

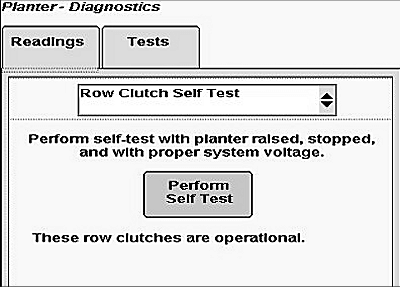

Row Clutch Diagnostic Self-test During Operation.

Perform self-test with planter raised over height set point, stopped, and with proper system voltage.

After pressing self-test button, screen displays "These row clutches are operational", followed by a list.

OUO6074,000107E -19-17NOV08-36/37

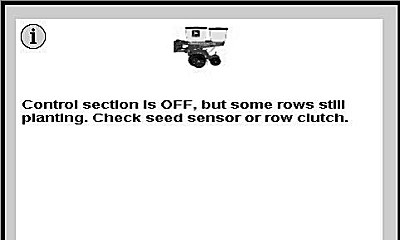

Control section is OFF, but some rows still planting. Check seed sensor or row clutch.

OUO6074,000107E -19-17NOV08-37/37
