Attach Seeding Tool to Tow-Between Cart

causym CAUTION: Use a signal person to direct tractor and seed cart movement. Tractor operator's view of seeding tool hitch point is completely obscured by seed cart. Know hand signals and what each signal means before moving. Move slowly and follow signal person's directions to avoid a crushing accident which could cause severe injury or death to someone. Do not stand between air cart and implement while cart and tractor are in motion.

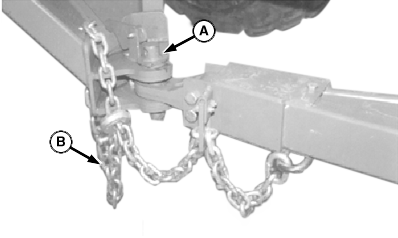

1. Align hitch and attach with pin (A).

causym CAUTION: A safety chain will help control drawn equipment should it accidentally separate from the hitch while transporting. A runaway machine could cause severe injury or death to a motorist, bystander or the operator. Using the appropriate adapter parts, attach the chain to the seeder cart. Provide only enough slack in chain to permit turning. See your John Deere dealer for a chain with a strength rating equal to or greater than the gross weight of the towed machine.

2. Attach safety chain (B) to seed cart hitch.

N43984
A41634


A-Pin
B-Safety Chain

AG,OUO6023,1005 -19-28MAY09-1/3

causym CAUTION: Escaping fluid under pressure can penetrate the skin, causing serious injury. Avoid the hazard by relieving pressure before attaching hydraulic hoses to couplers.

causym CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

NOTE: To help identify and properly connect hoses, Hose Identification Kits AA50028 and AA61283 are available from your John Deere dealer.

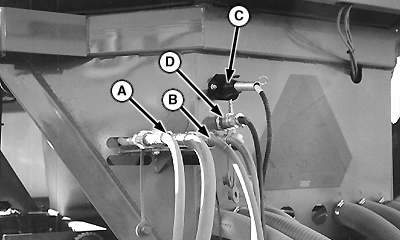

3. Connect depth-control hoses into (Selective Control Valve) SCV I hydraulic couplers (A).

4. Connect wing-fold hoses into SCV II hydraulic couplers (B).

5. Connect warning light cable into plug (C).

6. If equipped with Seed Counters or Blockage Monitor, attach communications cable to plug (D).

X9811
A41635A


A-No. 1 Hydraulic Couplers
B-No. 2 Hydraulic Couplers
C-Plug
D-Plug

AG,OUO6023,1005 -19-28MAY09-2/3

NOTE: Ensure seals are in place when attaching hose connector.

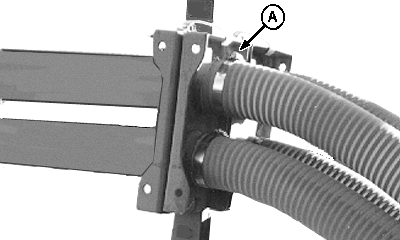

7. Remove coupler cover plates and attach seed cart hose connectors (A) to seeding tool with clips.

Remove any debris (animal nests) from tubes before making connections.


A-Hose Connectors

A42323
