Open and Close Hydraulic Lock-Up Valve

After making hydraulic hose connections to tractor or cart, open hydraulic lock-up valve (A).

Before transporting, raise machine and openers fully, close hydraulic lock-up valve.

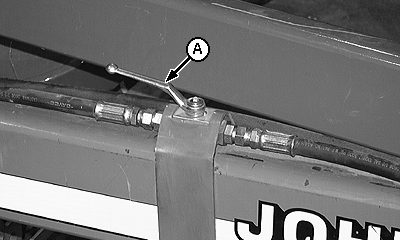

A-Hydraulic Lock-Up Valve
