Detach Machine From Tractor

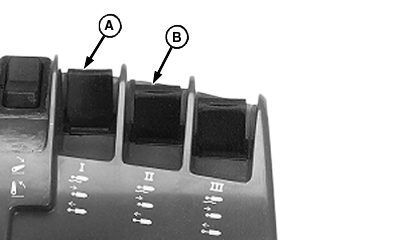

Keep all persons away from machine when raising and lowering wings. Always locate machine on level ground when raising and lowering wings. Never raise or lower wings when moving. 1. Park machines on flat level ground and block wheels.2. With transmission in "Park", completely raise machine using SCV I lever (A). 3. Fold wings fully, using SCV II lever (B). |
|
CAUTION:
To help prevent severe injury or death to you or someone else:
AG,OUO6023,1014 -19-28MAY09-1/7 |
|
4.
Close hydraulic lock-up valve (A) on seeding equipment.
|
|
AG,OUO6023,1014 -19-28MAY09-2/7 |
|
5.
Seeding Tool: Attach hitch jack in vertical position with pins.

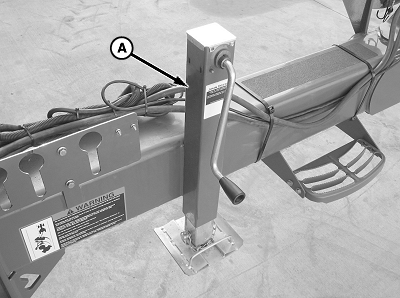

6. Tow-Between Cart or Seeding Tool: Remove weight from tractor drawbar using hitch jack (A).
|
|
AG,OUO6023,1014 -19-28MAY09-3/7 |
|
7.

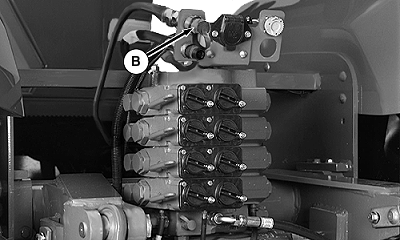

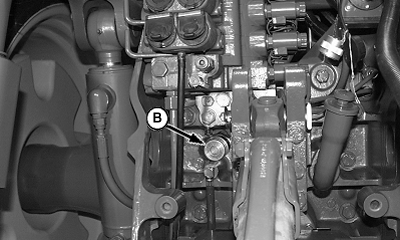

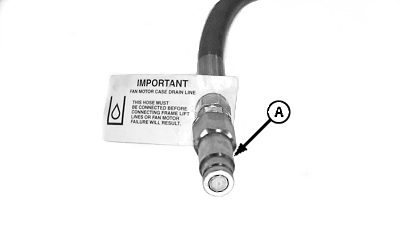

Remove fan motor case drain hose (A) from low-pressure drain coupler (B).
|
|
AG,OUO6023,1014 -19-28MAY09-4/7 |
|
8.

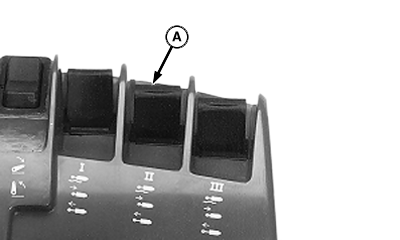

(If Wings are folded) Before disconnecting folding cylinder hydraulic hoses, relieve pressure by positioning SCV lever (A) in "Float" position.
|
|
AG,OUO6023,1014 -19-28MAY09-5/7 |
|

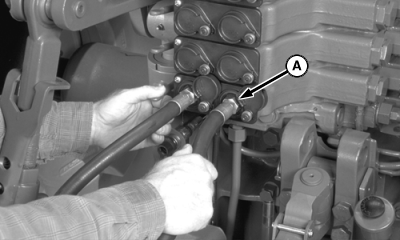

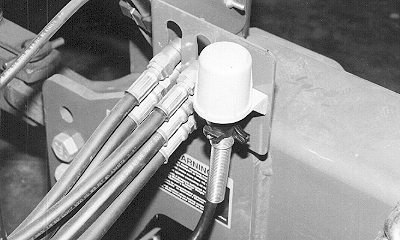

Place SCV controls in "Float" position to relieve pressure before disconnecting hoses. 9. Remove hydraulic hoses (A) and electrical connectors from tractor outlets and cover receptacles. Place hoses and cables in storage positions on hitch bracket.
|
|
AG,OUO6023,1014 -19-28MAY09-6/7 |
|
10.

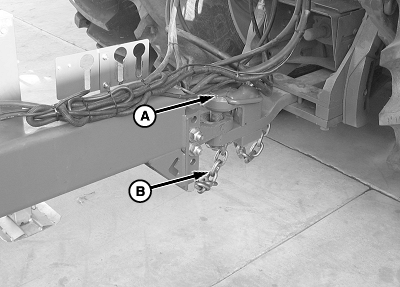

Remove safety chain (B).
11. Remove hitch pin (A). 12. Drive tractor away from machine.
|
|
AG,OUO6023,1014 -19-28MAY09-7/7 |
