Use Warning Lights and SMV

CAUTION: When transporting the machine on a road or highway, use accessory lights and devices for warning operators of other vehicles. Check local governmental regulations. Various safety devices are available from your John Deere dealer. Keep safety items in good condition. Replace missing or damaged items.

Amber warning lights are installed at the widest points of the seeding tool. Red tail lights are located at the rear of the combined machines.

For maximum machine visibility, verify warning and tail lights (A), reflectors, and SMV sign (B) are clean.

A lighting enhancement module (C) has been incorporated into the 1910 Cart lighting circuit. This module causes the red tail lights to function as turn signals. During normal transport, both amber warning lights flash in unison at high intensity, and both red tail lights illuminate steady at low intensity. When a turn is signaled, the red tail lamp and the amber warning lamp, in the direction of the turn, flashes at high intensity.. The opposite side amber and red lamps will illuminate steady at high intensity.

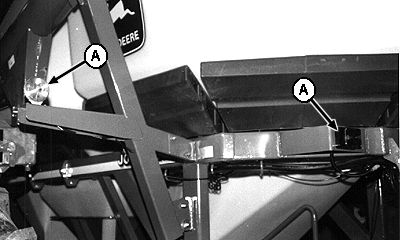

A-Warning and Tail Lights

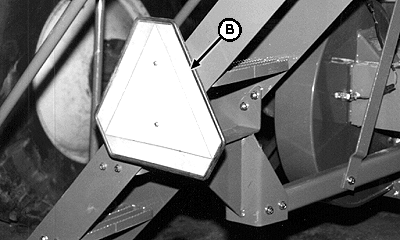

B-Slow Moving Vehicle Sign

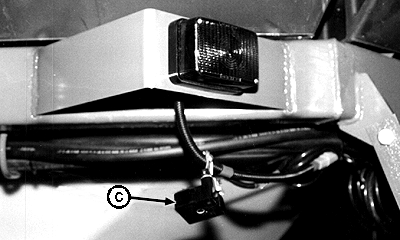

C-Lighting Enhancement Module

AG,OUO6023,1021 -19-28MAY09-1/1
