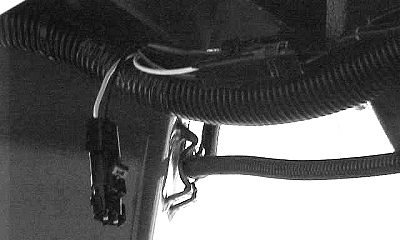

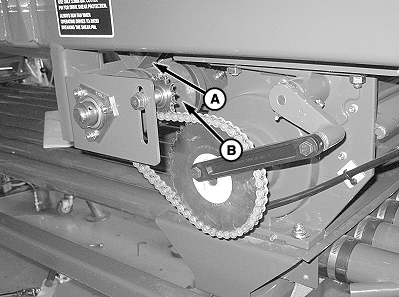

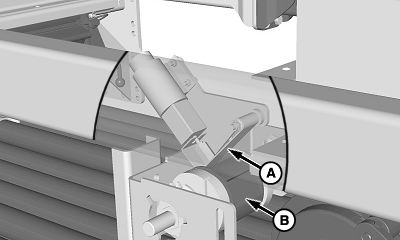

Connect Main Clutch Power Jumper (Limp Home Feature)If an electronics failure occurs, connect main clutch to the constant power lead. This connection allows continued seeding without monitor on-off control. NOTE: On carts equipped with auger fill lights or hydraulic calibration kit, the constant power lead, labeled LIMP HOME, is part of the main cart harness. The lead is located near the blockage control box on tow-between carts and at the rear of tow-behind carts. 1. Disconnect seed cart harness connector from clutch plug.2. Attach constant power (LIMP HOME) connector to clutch. 3. When using the limp home feature, meter clutch tabs (A) must be raised and secured to ensure meter drives (B) are engaged.
|
|
