Remove Meter Cartridge Assembly

1. Push both half-width disconnect handles (A) up to block product passages to meter. Should disconnect handles feel jammed or locked-up and not operate smoothly, they can usually be "worked" free using short up-and-down strokes at the start. Working the handles loosens caked-on residue that may be preventing smooth operation.


A-Half-Width Disconnect Handles

A48922

AG,OUO6023,1042 -19-01JUN07-1/2

NOTE: Air carts with 3 m (9 ft 10 in.) tire spacing. Rotate lock handle to clear tire.

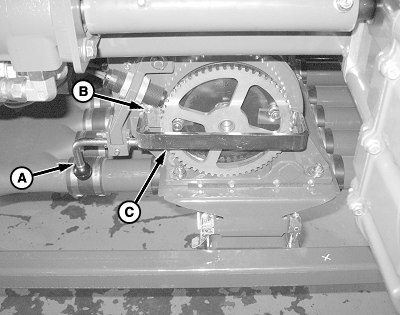

2. Turn lock handle (A) up, and pull forward, to release lock cam.

3. Turn meter handle (B) counterclockwise to release from lock tab (C).

4. Pull meter assembly from housing.


A-Lock Handle
B-Meter Handle
C-Lock Tab

A64731

AG,OUO6023,1042 -19-01JUN07-2/2
