Open or Close Product Runs

IMPORTANT: Double-Shoot Manifold must have the same number of runs on the top and bottom. (For every top run there must be a bottom run directly underneath.)

NOTE: Install or engage agitators on active runs. Deactivate agitators on inactive runs.

Use two devices to block product from each inactive run. Install (snap) meter doors (A) into enclosure openings on inactive runs. Install meter seals (B) between meter cartridge and manifold plate on inactive runs.

Remove both devices to activate a run and allow product to flow into the air stream.

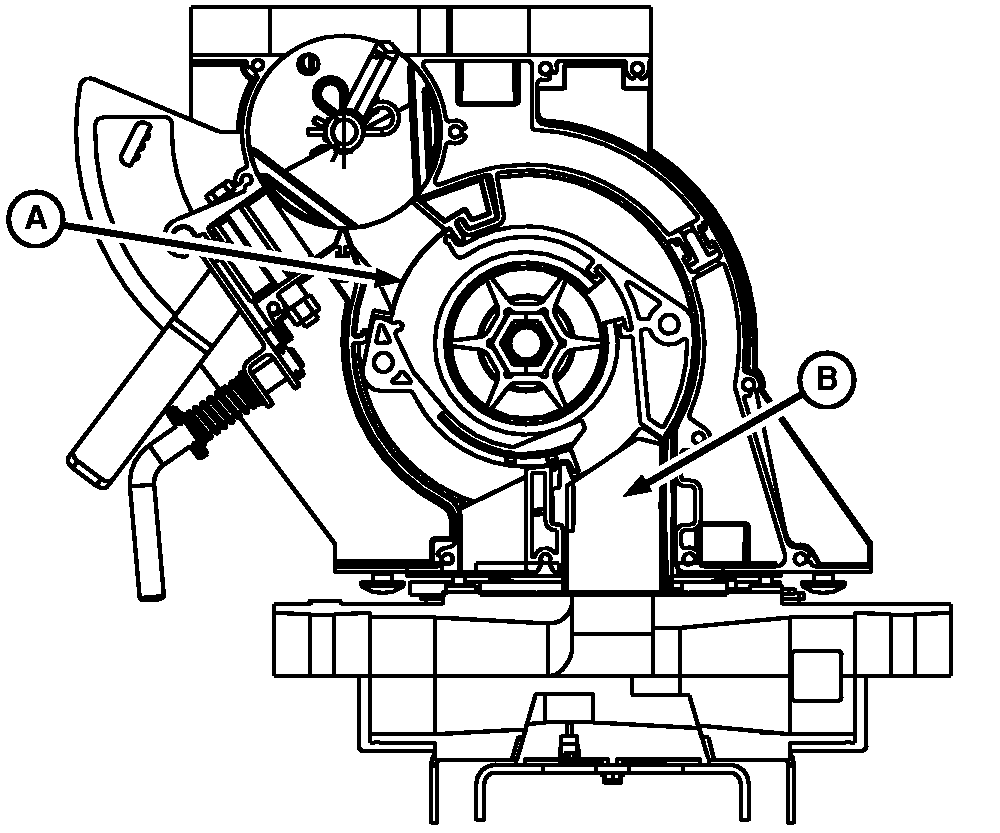

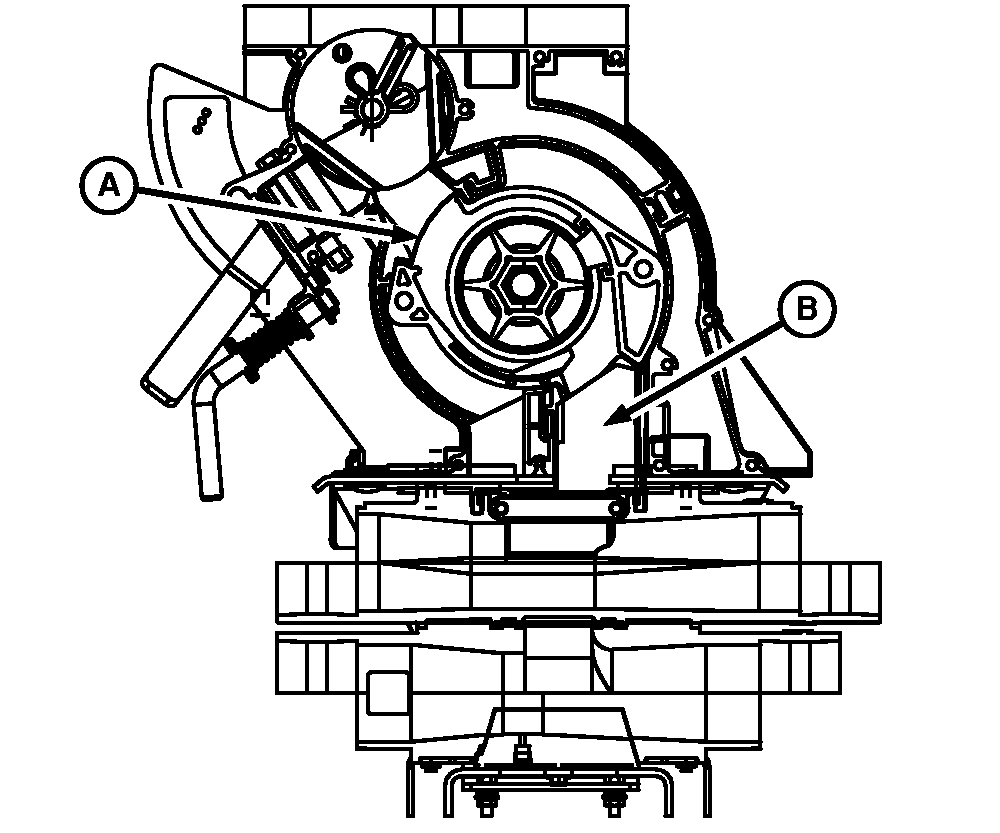

A-Meter Doors
B-Meter Seals
