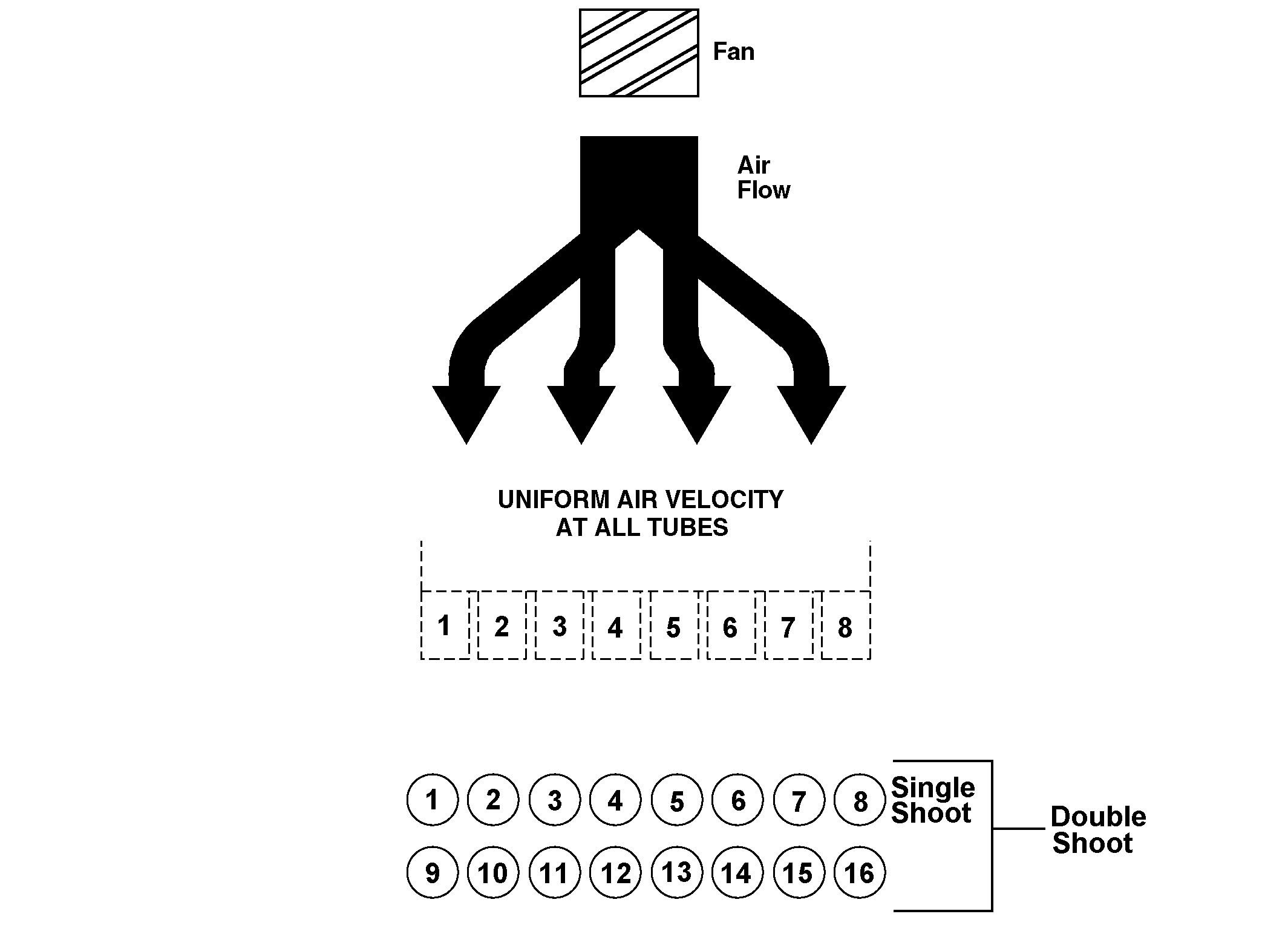

Number meter cartridge segments and corresponding product runs from left-to-right. The same numbering process can be applied to the seeding equipment's primary air lines and secondary headers.

On an 8-run single-shoot system, all available meter segments and product runs are active and are numbered left-to-right 1-8.

A double-shoot system can be numbered left-to-right 1-8 for the top runs and left-to-right 9-16 for the bottom runs.

Systems using less than the full number of available runs are also numbered from left-to-right, counting only the active product carrying runs.

AG,OUO6023,1066 -19-01JUN09-1/1
