Inspect Air System Seals, Hoses, and Header Rings
IMPORTANT:
If tank is not sealed tightly, product metering can be adversely affected. If the tank is not pressurized, product will not meter properly.

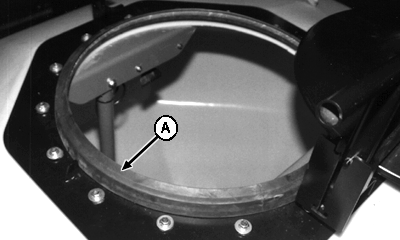

1.
Inspect tank lid seals (A) at each filling or daily. Verify seal is free of cuts, damage, and seed has not built up on seal. Replace as necessary.
A-Tank Lid Seals
|
|
|
|
AG,OUO6023,1072 -19-04JUN09-1/5
|
|

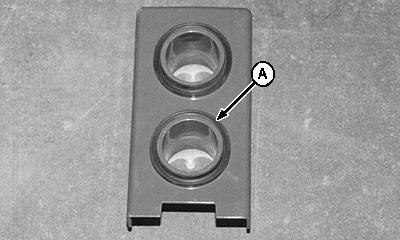

2.
Inspect outlet hoses and coupler seals (A) daily. Replace as necessary.
A-Coupler Seals
|
|
|
|
AG,OUO6023,1072 -19-04JUN09-2/5
|
|
NOTE:
To maximize service life and equalize wear, hoses must be periodically rotated one quarter turn.

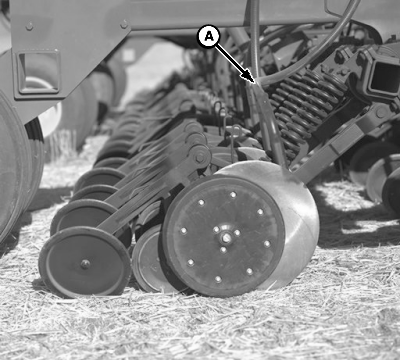

3.
Inspect tool primary hoses (A) for wear or damage. Replace as necessary.
A-Tillage Primary Hoses
|
|
|
|
AG,OUO6023,1072 -19-04JUN09-3/5
|
|
4.
Inspect manifold header rings (A) for weathering. Replace as necessary.
A-Manifold Header Rings
|
|
|
|
AG,OUO6023,1072 -19-04JUN09-4/5
|
|

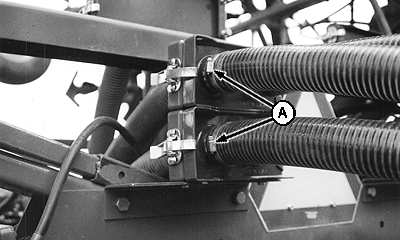

5.
Inspect secondary hoses (A) from header ring to seed boot for wear or damage. Replace as necessary.
A-Secondary Hoses
|
1890 Shown
|
|
|
