Operating Tank Lids

IMPORTANT: Product metering will be adversely affected if tank is not sealed tightly. If the tank is not pressurized, product will not meter properly. For proper lid adjustment (see ADJUSTING TANK LID DOWN PRESSURE AND CENTERING TABS in Operating Machine-Air System).

When closing tank lids, perform the following steps to ensure that tank is properly sealed:

1. Wipe product overflow, if any, from lid seal.

2. Inspect lid seal for damage and product buildup.

3. Rotate lid over opening until it contacts stop.

4. Make sure lid is not clamped down on lid centering brackets.

AG,OUO6023,1167 -19-21JUL00-1/2

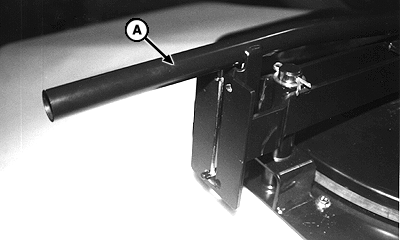

5. Push down on handle (A) to lock lid in "J" slot as shown.


A-Handle

A40148DS
A43878

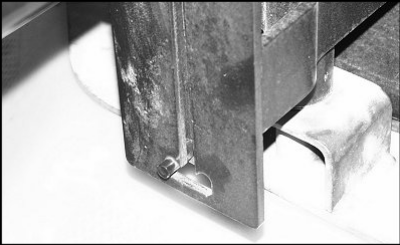

"J" Slot

AG,OUO6023,1167 -19-21JUL00-2/2
