Tank Filling Indicator Lights

1. GREENSTAR console does not need to be set in any particular mode for tank filling indicator lights to display. Tank filling lights display regardless of console's current mode (SET-UP, RUN or INFO).

AG,OUO6023,1171 -19-21JUL00-1/2

NOTE: Amber indicator lights are dual purpose. In any display mode, they indicate tank filling status as described below. In RUN mode, lights indicate fan speed, as described in the Air System section. Fan speed indicator lights are a set-up feature, not an operational display.

2. Filling status of either front or rear tank is indicated by lower (A) and upper (B) lights.

When all in-tank level sensors (C) are covered with product, the upper and lower lights alternately flash to indicate the tank is full. Lights will stop flashing if:

  • More than three minutes have elapsed with no activity.
  • There is activity at another tank (any sensor activated).
  • Cart begins to move; tire speed sensed.

NOTE: Product level is also indicated on the tractor-mounted display console.

NOTE: Top sensor may be lowered to allow the top sensor to trip earlier when using mesh basket. To lower bracket and sensor assembly, loosen U-bolts (D).

A40164
A46297

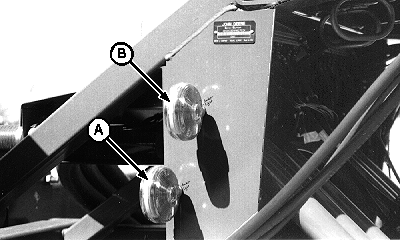

A-Lower Lights
B-Upper Lights

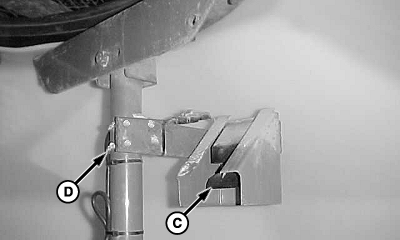

C-In-Tank Level Sensors
D-U-bolt
