Adjusting Auger Hopper Position

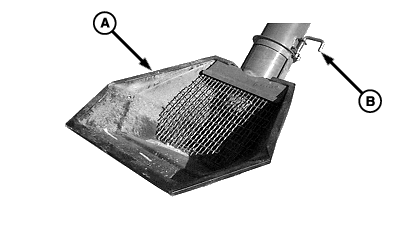

Hopper (A) is held in adjusted position by spring-loaded lock pin (B).

To adjust hopper, pull down on lock pin handle to release lock pin from sleeve hole. Rotate hopper to desired position. Align closest sleeve hole with pin and release pin to lock hopper.

A-Hopper
B-Spring-Loaded Lock Pin

AG,OUO6023,1175 -19-21JUL00-1/1
