Auger and Conveyor Arm Position Lock

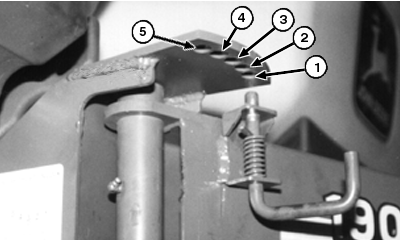

Auger/Conveyor Swing Arm Position Lock has five hole/pin positions. Set spring loaded pin into correct hole for desired operation.

Regular Downspout

Hole Number Auger Operation
1 Fill Rear Tank(s)
2 Fill Front Tank
3 Empty Rear Tank
4 Empty Middle Tank
5 Empty Front Tank



Hole/pin positions are recommendations only. You may prefer to use a different hole/pin position than the one that is suggested.

A42790
A54231

AG,OUO6023,1176 -19-21JUL00-1/2

causym CAUTION: If operating in windy conditions or on a slope, be sure to lock the swing arm in desired position to avoid unwanted movement.

Telescoping Spout

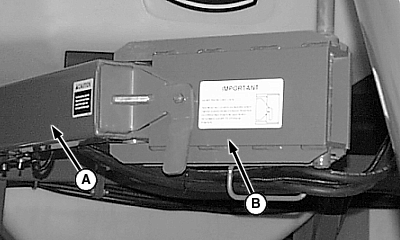

Unlock swing arm (A) and swing link (B), so the auger/conveyor has full movement. Unlocking the swing link allows the top of the auger/conveyor to move with minimal hopper movement. Position auger/conveyor so the top is between tank lids and the spout goes into the tank at an angle. Positioning between tanks and at an angle allows for more even filling and less movement when switching to the next tank.

A54267


A-Swing Arm
B-Swing Link

AG,OUO6023,1176 -19-21JUL00-2/2
