Before and After Each Season

Lubricate each of the following points before each operating season and after each season when placing machine in storage. Apply oil or grease as indicated on the symbol.

Drop the center plate down on the air manifold system and clean out that assembly. This area can build up with dirt and debris causing the slide assembly to bind on doubleshoot machines.

AG,OUO6023,1188 -19-05JUN09-1/2

A60100

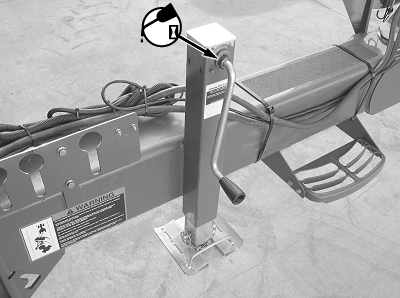

Tow-Between Hitch Jack
A40117B

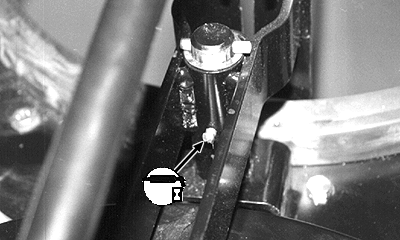

Tank Lid Pivot-All

A48920

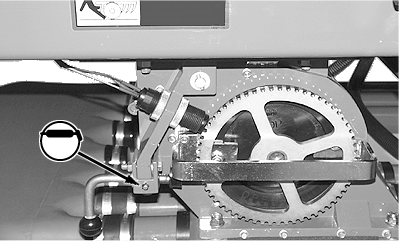

Meter Lock Levers-All
A64743

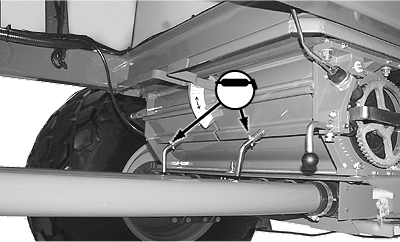

Cleanout Panel Levers-All

AG,OUO6023,1188 -19-05JUN09-2/2
