Check Tow-Behind Wheel Attachment Hardware and Bearings

Check the torque of all wheel hardware and front wheel bearings during the first week of operation, then annually or every 150 hours.

To adjust front wheel bearings, remove center hub cap and cotter pin. Raise the wheel and turn it. Tighten the nut until there is a slight drag on the bearings, back off to the first hole, and insert cotter pin. Replace hub cap.

AG,OUO6023,1220 -19-02JUN09-1/2

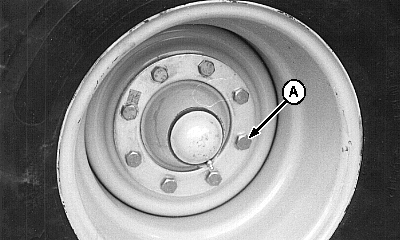

Tighten front wheel bolts (A) to specification.

Specification

Front Wheel Bolts -Torque 200 N·m  (150 lb-ft)


A-Wheel Bolt

A41568A

AG,OUO6023,1220 -19-02JUN09-2/2
