Adjust Meter Speed Sensor Gap

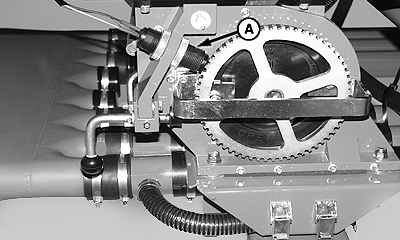

Sensor (A) must be set 3 mm (0.12 in.) ± 1 mm (0.04 in.) from outer edge of sensor ring teeth to properly read and signal meter speed.

To adjust, loosen clamp hardware and set sensor-to-ring gap at 3 mm (0.12 in.) ± 1 mm (0.04 in.).

Tighten hardware after adjustment.

A-Sensor
