Replace and/or Adjust Fan Speed Sensor

1. Remove sensor (A) from fan housing.

2. Rotate fan to bring signal rivet directly in line with hole.

3. Turn sensor into hole until it contacts rivet.

4. Back sensor out 1 to 2 full turns and tighten jam nut.

5. Rotate fan two turns to verify sensor-to-rivet clearance.

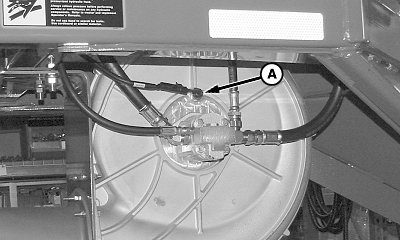

A-Sensor

A59627

AG,OUO6023,1224 -19-20MAR07-1/1
