Replace and/or Adjust Ground Speed Sensor

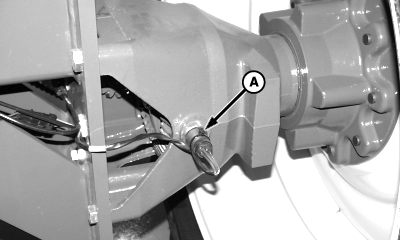

1. Remove sensor (A) from left-hand wheel casting. Replace with new, if necessary.

NOTE: Sensor-to-plate contact can be viewed through top hole in casting.

2. Turn sensor into hole until it contacts target plate.

3. Back sensor out two turns or 3 mm (0.12 in.) ± 1 mm (0.04 in.) and tighten jam nut.


A-Sensor

A46130

AG,OUO6023,1231 -19-21JUL00-1/1
