Replace Meter Drive Shear Pin
1.
A shear pin is used to protect meter drive from damage.
-
Excessive forces occur when meter cartridge is filled with product when fan is not running. Do not engage meters unless fan is running.
-
Excessive forces occur when certain seed sizes bind between meter rollers and meter housing. If binding occurs with small seed (less than 6 mm [1/4 in.]), the black meter roller, and small wear plate, switch to standard wear plate. If binding occurs with small seed (approaching 6 mm [1/4 in.]), the black meter roller, and standard wear plate, switch to green meter roller.
IMPORTANT:
Avoid transmission damage. Do not use any other hardware to replace factory specified shear pin (11M7017). See your John Deere dealer for correct repair parts.
2.

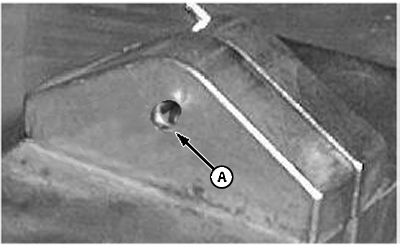

Install 3.2 mm diameter cotter pin (A) in shear blocks and spread cotter pin (A) apart.
3.

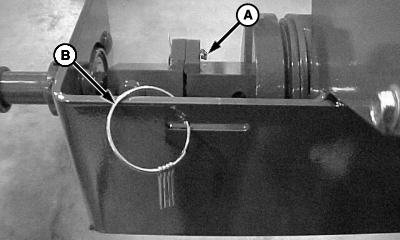

Extra cotter pins are stored on ring (B) on clutch plate.
|
A-Cotter Pin
B-Ring
|
