Change Rear Tires

If rear tires have been changed since last successful seeding, inspect main drive clutch sprocket (B) to ensure tooth count matches new tire size. Tooth count is stamped into sprocket for easy identification.

NOTE: Add or remove chain links (as necessary) when sprockets are changed.

IMPORTANT: Maintain accurate travel speed, area, and application rate on monitor. Recalibrate tire speed sensor when tire size changes.

(See Monitor Setup section for sensor calibration procedure.)

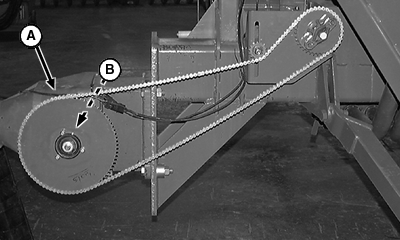

Wheel hub and axle housings (A) are factory assembled to match original rear tires. Reposition (as necessary), if rear tire size is changed.

A53658


A-Wheel Hub/Axle Housing
B-Main Drive Clutch Sprocket

AG,OUO6023,996 -19-03JUN09-1/2

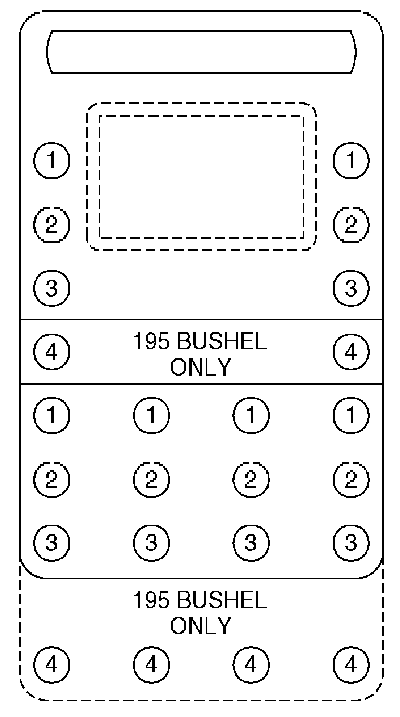

Refer to hole pattern diagram and chart to ensure that hub/axle housing-to-frame position is correct for new size tires.

Tire Sizes Use Hole Pattern Number
30.5L-32 R2, 710/70R38, 20.8R38 Duals, 20.8 R42, 30.5L 32 R1, 18.4R42 Duals 1
23.1-26 R2, 28L-26 R2, 28.1-R26R1, 30.5L-32 R3 2
23.1-26 R3, 28L-26 R3 3
18.4-26 R2 and R3 4 (195 bu Tow Behind Only)



IMPORTANT: Rear axle mounting bolts must be tightened to 675 N·m (500 lb-ft) to avoid machine damage. Maintain hardware tightness to prevent machine damage.

Specification

Rear Axle Mounting Bolts -Torque 675 N·m (500 lb-ft)

A41769A

AG,OUO6023,996 -19-03JUN09-2/2
