Change Row Spacing

If a different implement is used with cart or if row spacing is changed, inspect one-way clutch sprocket (A) to ensure tooth count agrees with row spacing. Tooth count is stamped into sprocket for easy identification.

NOTE: Add or remove chain links (as necessary) when sprockets are changed.

Seeding Tool Row Spacing Sprocket Teeth
30.5 cm (12 in.) Row Spacing 23T
25 cm (10 in.) Row Spacing 28T
19 cm (7.5 in.), 38 cm (15 in.), and 76 cm (30 in.) Row Spacing 37T
15 cm (6 in.) Row Spacing 46T

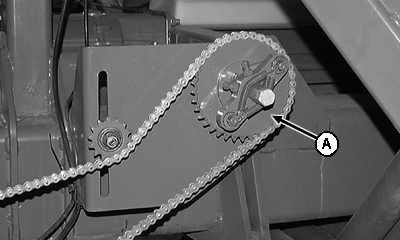

A41627B


A-Clutch Sprocket

AG,OUO6023,997 -19-03JUN09-1/1
