Clean Stationary Double-Shoot Air Chambers

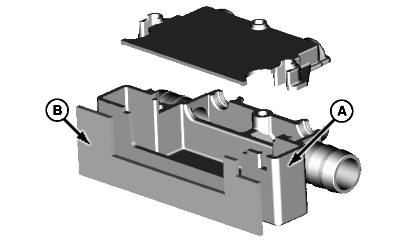

IMPORTANT: Do not damage gasket (B). Replace gasket (B) if damaged.

NOTE: Remove one hose at a time. Mark the hose and air control housing.

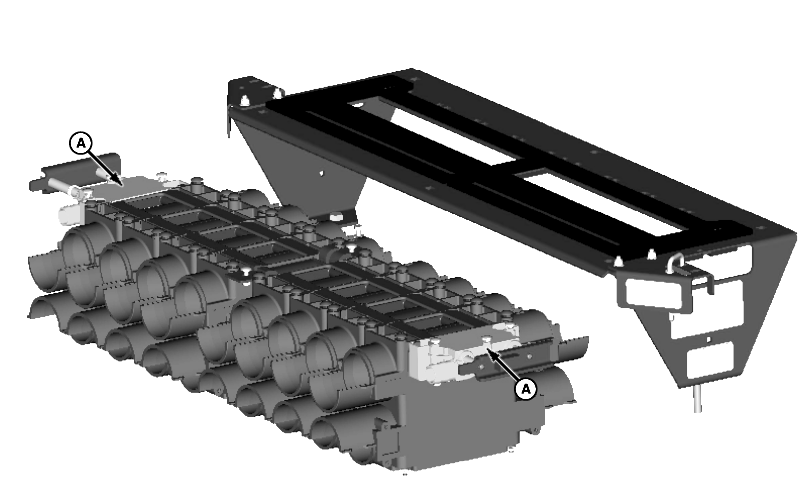

1. Remove air chamber (A) from end of manifold.

2. Remove hose from end of air chamber (A) if needed.

3. Clean out air chamber (A).

4. Remove any debris in hose. Use an air compressor to blow out hose.

5. Reattach hose and move to the next hose.

NOTE: Use talc or soap water on the gasket (B) to help in reattaching.

6. Reattach air chamber (A) to end of manifold.

OUO6030,00002EB -19-03JUN09-1/1
