Storage Position

Auger Only

IMPORTANT: To avoid contact with left-hand front tire of a tow-behind cart, hopper must be stored with closed side facing out, away from cart frame.

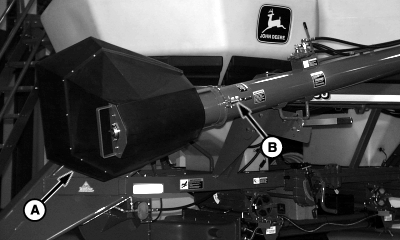

1. Auger Only: Hopper (A) is rotated so closed side is facing away from cart and secured with spring-loaded pin (B).

2. With hopper turned to this position, rain can not collect in the bottom.

A46141


A-Hopper
B-Spring-Loaded Pin

OUO6030,0000343 -19-09MAR04-1/4

Auger and Conveyor

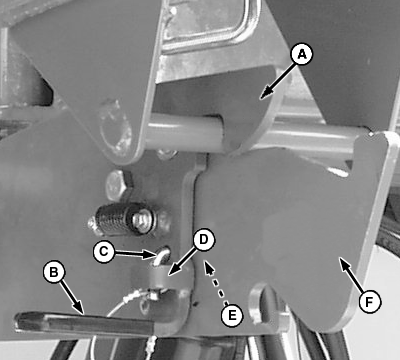

1. Conveyance storage/transport latch (A) is closed on tube and held by spring-loaded pin. Lever (B) is down when latch is closed.

2. Insert pin (C), front to rear, through lever (B) and latch bracket (F). Turn pin down behind locking tab (D) as shown and install spring pin (E).


A-Storage/Transport Latch
B-Lever
C-Pin
D-Locking Tab
E-Spring Pin
F-Latch Bracket

A54088

OUO6030,0000343 -19-09MAR04-2/4

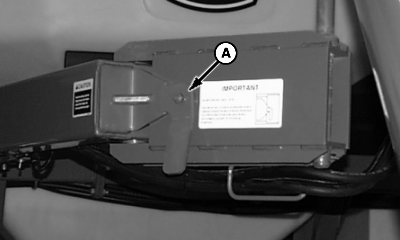

IMPORTANT: Swing link lock (A) must be securely locked when conveyance is in storage position or machine damage may occur.

3. Swing link lock (A) is engaged to restrict movement.


A-Swing Link Lock

A49181

OUO6030,0000343 -19-09MAR04-3/4

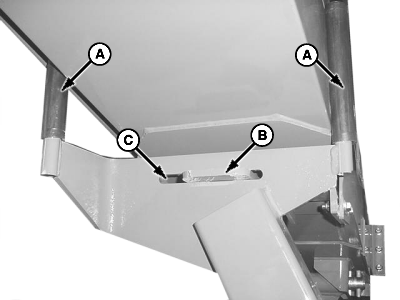

IMPORTANT: Plate (B) must be properly inserted in slot (C) when in storage position or machine damage may occur.

4. Plate (B) is held in place by slot (C) between storage posts (A).


A-Storage Posts
B-Plate
C-Slot

A49969

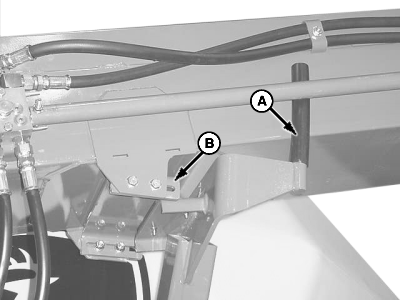

Conveyor Shown

A49970

Conveyor Shown

OUO6030,0000343 -19-09MAR04-4/4
