Releasing From Storage Position

Auger and Conveyor

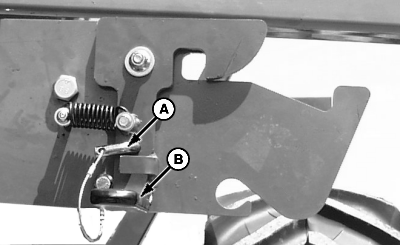

1. Release keeper pin (A) and pull out on lever to open hook and release storage latch (B).

2. Conveyance tube should rest on top of latch bracket.


A-Keeper Pin
B-Latch

A49935

OUO6030,0000344 -19-09MAR04-1/3

Auger Only

NOTE: Hopper (A) is held in adjusted position by spring-loaded lock pin (B).

1. Pull down on spring-loaded lock pin (B) handle until released from hole in sleeve. Rotate hopper (A) to filling/emptying position.

2. Align closest hole with pin and release pin to lock hopper.


A-Hopper
B-Spring-Loaded Lock Pin

A46373
A46939

OUO6030,0000344 -19-09MAR04-2/3

Auger and Conveyor

causym CAUTION: Avoid crushing injuries. Keep hands and fingers away from hinge area when positioning conveyance.

1. Use any one of three handholds to position conveyance.

  • Lock tube (A)
  • Hopper handle (B)
  • Top outside lip of the hopper (C)

2. Using both hands for control, slide conveyance tube off bracket, gently lowering hopper to the ground.

3. Pull hopper toward front of cart, pivoting straight support arm away from frame, until outlet end of tube clears storage posts.

4. Pivot hopper around to the outside of cart.

5. Refer to AUGER AND CONVEYOR ARM POSITION LOCK for positioning the auger/conveyor.


A-Lock Tube
B-Hopper Handle
C-Outside Hopper Lip

TS260
A49963

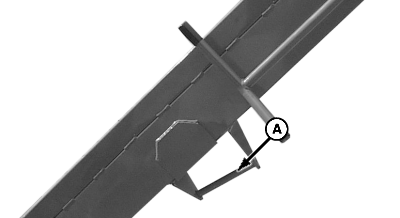

Lock Tube (Conveyor Shown)

A49964

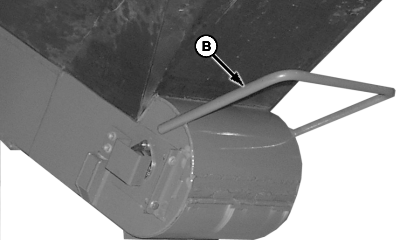

Hopper Handle (Conveyor Shown)

A49965

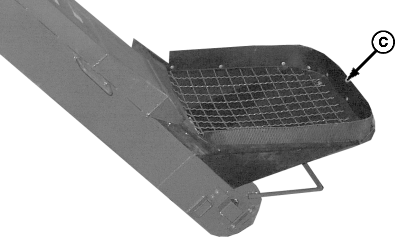

Hopper Lip (Conveyor Shown)

OUO6030,0000344 -19-09MAR04-3/3
