Filling Tank

causym CAUTION: Stop fan before opening tank lid. Lid may fly upward if opened while fan is operating.

Avoid exposure to airborne chemicals. Dust and fumes will be exhausted if tank lid is opened while tank is pressurized.

1. Position conveyance arm lock pin in holes 1 or 2.

TS220

OUO6030,0000345 -19-09MAR04-1/5

2. Reset selector valve (A) from "FAN" to "AUGER" position before climbing to tank lid platform.

A49319

OUO6030,0000345 -19-09MAR04-2/5

3. Without Telescoping Spout: Release and rotate tank lid. Position auger tube so outlet hose (A) is over tank opening.


A-Outlet Hose

A49045

OUO6030,0000345 -19-09MAR04-3/5

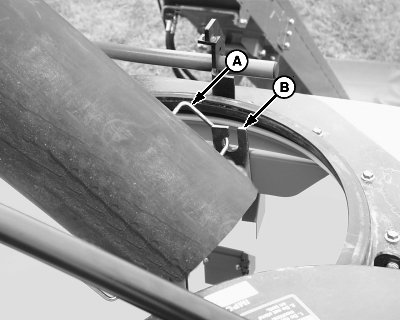

With Telescoping Spout: Release and rotate tank lid. Position top of auger/conveyor so that telescoping spout is between tank lid openings. Spout should enter tank at an angle. Positioning spout between tanks and at an angle allows for more even filling and less movement when switching to the next tank. Place spout handle (A) in support bracket (B).


A-Handle
B-Bracket

A49399

OUO6030,0000345 -19-09MAR04-4/5

IMPORTANT: Before filling, check inside tanks and remove any obstructions, such as rocks, twigs, sticks, or straw, from meter inlet openings.

IMPORTANT: Use of clean dry product is recommended for best metering. Do not use seeds treated with liquid inoculents.

NOTE: Depending on product quality, agitator shaft may need to be set for more aggressive agitation. See Operating Machine-Product Metering section for further information.

IMPORTANT: If meter cartridge assembly is removed, be sure half-width disconnect handles are up (blocking product passages to meter) and that cleanout panels are in place and locked before filling tank.

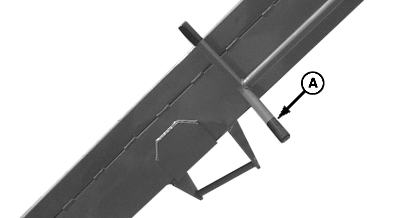

4. Operate auger control valve (A) to fill tank. Valve on 203 mm (8 in.) auger and conveyor can also be operated from outlet end.

NOTE: See Operating Machine-Air System section for inspection and adjustment procedures of tank seals and lids.

After filling:

  • Wipe product overflow from lid seal.

  • Inspect lid seal.

  • Rotate lid over opening until it contacts stop.

  • Make sure lid is not clamped down on lid centering brackets.

  • Push down on handle to lock lid.

A49961


A-Auger Control Valve
