Detach Tow-Behind Cart From Seeding Tool

causym CAUTION: To help prevent personal injury caused by unexpected movement of the machine:

  • Park machine on level surface.

  • Block tires.

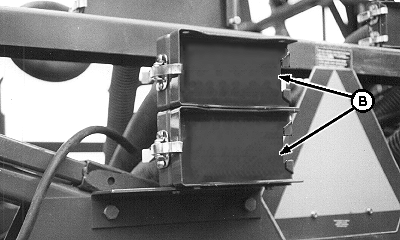

1. Open clips to disconnect air hose connectors (A). Install coupler cover plates (B). If cover plates are not available, plug tubes with rags to keep out debris and rodents.

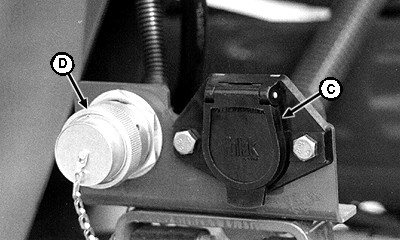

2. Disconnect cart clutch and light power harness and control unit power and communications cable from connectors (C and D). Install plugs and caps.

3. Disconnect any other cables or harnesses attached at the rear of the seeding tool, including:

· Remote Seeder Switch Cable (if equipped).


A-Air Hose Connectors
B-Cover Plates
C-Connector
D-Connector

A42162
A42168
A42602

OUO6030,000048B -19-28MAY09-1/4

causym CAUTION: Serious personal injury can result if you attempt to disconnect hydraulic hoses under pressure. Refer to tractor Operators manual for SCV operation to relieve hydraulic line pressure before removing hoses.

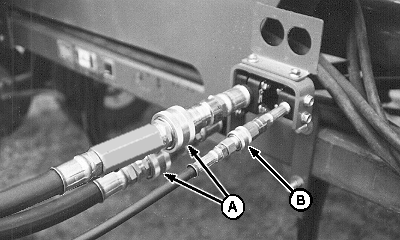

4. Disconnect fan and auger hoses (A) and fan motor case drain hose (B) from couplers. Install plugs and caps.


A-Fan/Auger Hoses
B-Fan Motor Case Drain Hose

A42161

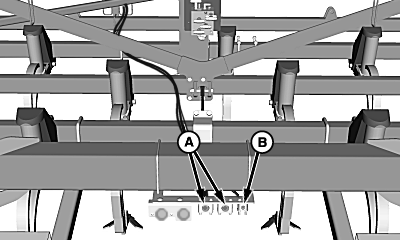

A59338

1830, 1835 Shown

OUO6030,000048B -19-28MAY09-2/4

5. Remove pins (B) and move storage stands (A) from transport-field position to storage position. Place tube ends in contact with ground and retain with L-pins and quick-lock pins.


A-Storage Stands
B-Pins

A42156

Transport/Field Position

A42143

Storage Position

OUO6030,000048B -19-28MAY09-3/4

6. At both hitch connections, open hook latches and remove safety chains (A) from rear bar of tool.

7. At both hitch connections, remove hitch tube-to-arm pins (B).

8. Drive tractor and seeding tool away from air cart.


A-Chains
B-Pins

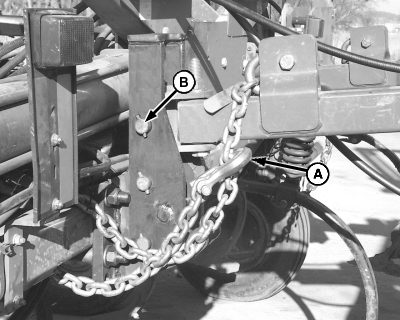

A54005

Except 1830, 1835

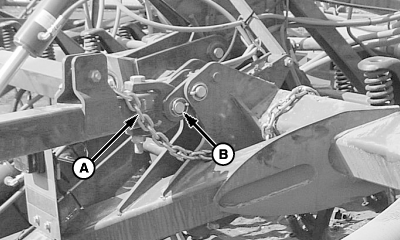

A60101

Only 1830, 1835

OUO6030,000048B -19-28MAY09-4/4
