Configure All Other Seeding Tools
|
|
|
1.
Select primary
Menu
button >>
Blockage
button >>
Blockage Configuration
softkey.
2. Select and check both No check boxes. 3. Select Top Shoot or Bottom Shoot check boxes. A check indicates primaries are active. |
4. Select the Wizard button. 5. Select Number of Towers input box and enter number of towers associated with a set of primaries. 6. Select Primary Only or All Run blockage. |
OUO6074,0000005 -19-29MAY09-1/3 |
|

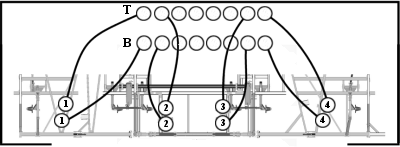

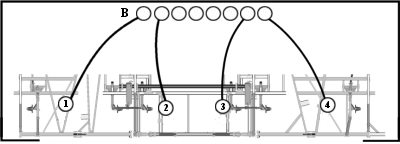

Primary Only blockage contains only one blockage sensor on a secondary hose per tower. 1. Select Next Page button.2. Select input box next to each tower label and enter the sensor number. The sensor number is on a tag at the end of the harness connected to each tower. 3. Select Enter button. All Run blockage contains one blockage sensor on every secondary hose. 1. Select Next Page button.2. Select Serial Number drop-down box next to each tower label and enter serial number of module. Module (A) serial number and tower label (B) are located on each module. 3. Enter number of sensors on each tower in input box.
|
|
OUO6074,0000005 -19-29MAY09-2/3 |
|
4.
Select
Blockage Configuration
button on lower area of screen.
5. Select each tower button to activate or deactivate all sensors on tower. Green is active. An X is inactive. All Run Only: Select individual row buttons to activate or deactivate rows. White is active. An X is inactive. Select Next Page or Previous Page buttons to cycle through screens. Select Enter button when complete.
|
|
OUO6074,0000005 -19-29MAY09-3/3 |
