Run Screen for Blockage
A62318

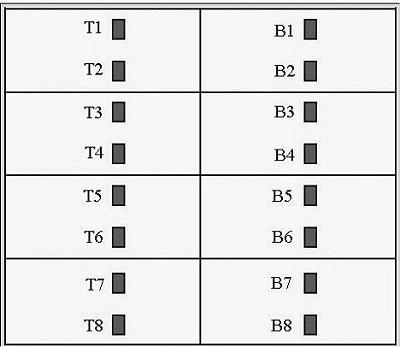

Primary Only Blockage
A62319

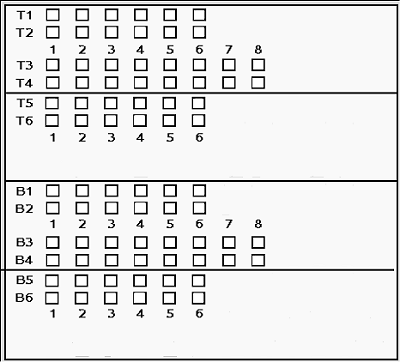

All Run Blockage

Select primary Menu button >> Blockage button >> Main Blockage softkey.

Blockage indicators show inactive rows (White), active rows (Green), blocked rows (Red), and shut off rows (X).

A62320

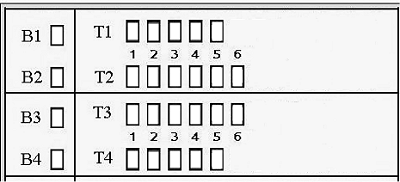

Combination Primary Only and All Run

A62045

Blockage Button

A62046

Main Blockage

OUO6074,0000006 -19-25MAR08-1/1
