Configure Date and Time

1. Select Menu >> Display button >> Settings softkey.

2. Select Time/Date tab.

3. Select each Date drop down box and choose the month, day, and year.

4. Select Date Format drop down box and choose desired format.

5. If area is currently observing daylight saving time, select Daylight Savings Time check box to display a check. When daylight saving changes, select this box to change hour reading instantly.

6. To use a 24 hour clock, select 24 Hour Clock check box to display a check.

7. Select Time input boxes and enter an hour and minute. Select a. m. or p. m. from drop-down box. 8. If equipped with GPS, perform the following:

a. Select GPS Time Sync check box to synchronize time.

b. Select GMT Offset drop down box and select a number representing the number of hours current location varies from Greenwich Mean Time.

c. Select Local Offset drop down box and enter the number of minutes current location is past local time zone.

Screen Area Information

Display Settings Display Settings Time/Date Time and Date Date Date Date Format Date Format MM Month DD Day YYYY Year Time Time 24 Hour Clock 24 Hour Clock Daylight Savings Time Daylight Savings Time
A59565

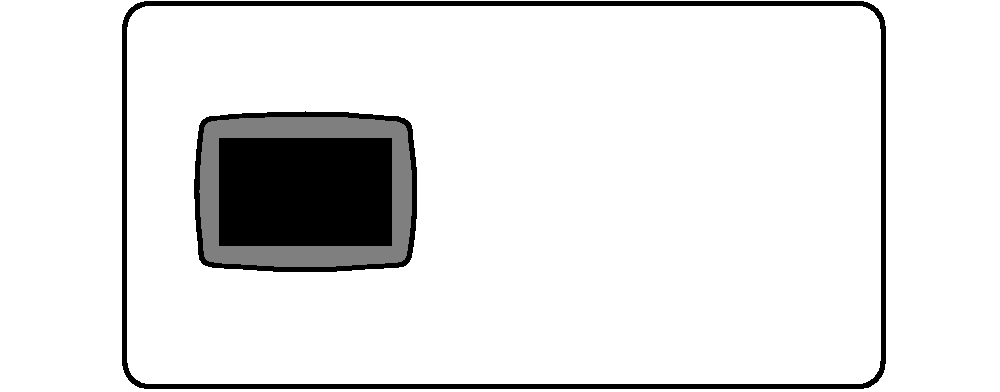

Display Button

A59592

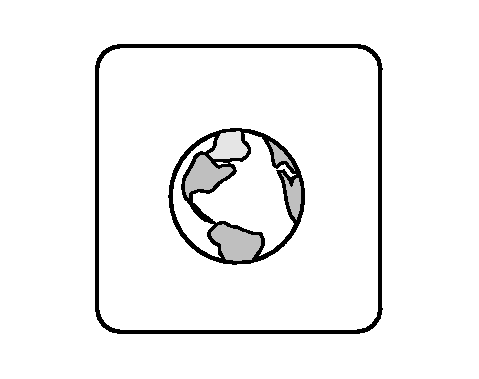

Settings Softkey

OUO6074,0000FC3 -19-22JUL08-1/2

GMT Offset Greenwich Mean Time Offset Local Offset Local Offset GPS Time Sync Global Positioning System Synchronization

OUO6074,0000FC3 -19-22JUL08-2/2
